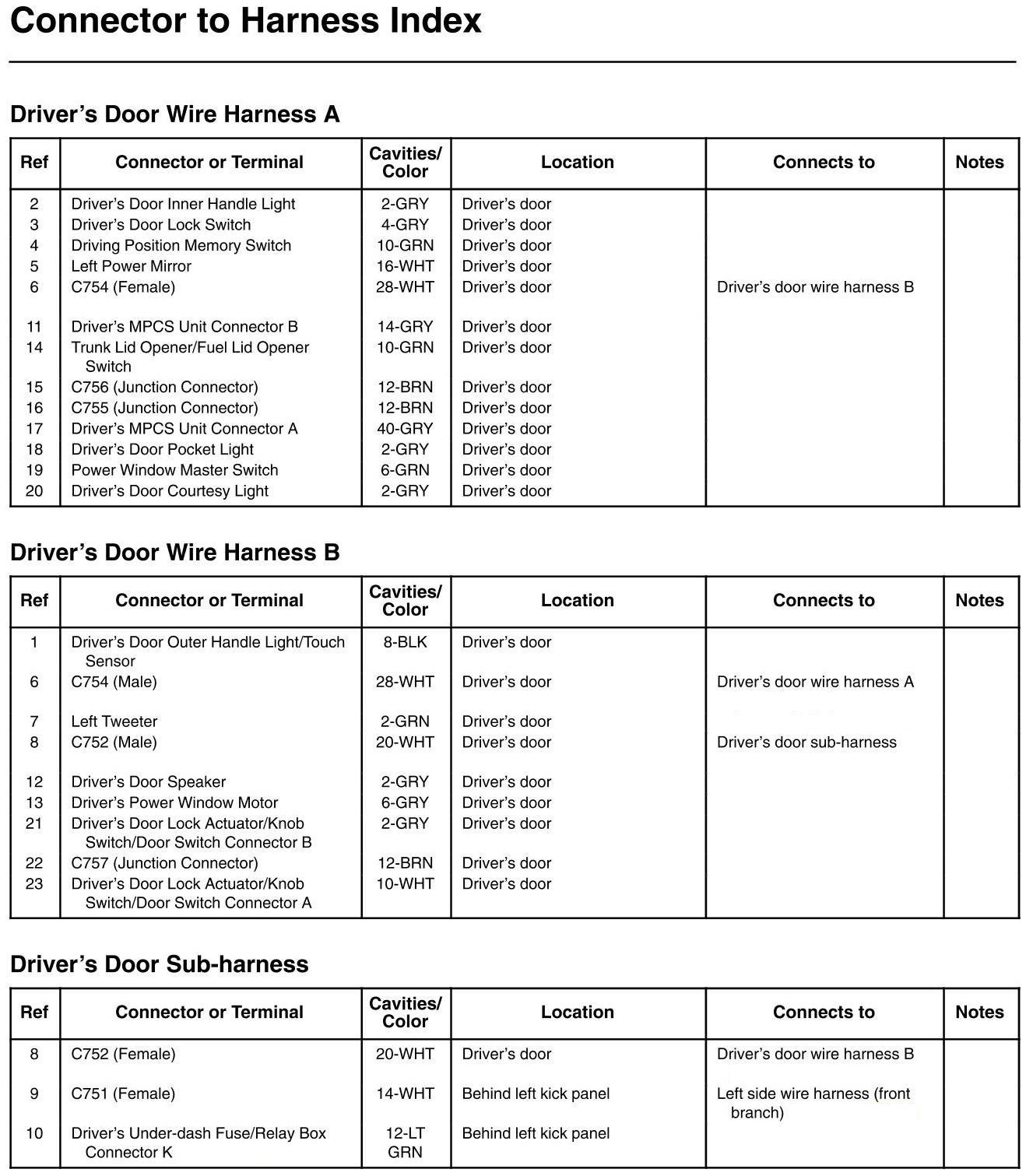

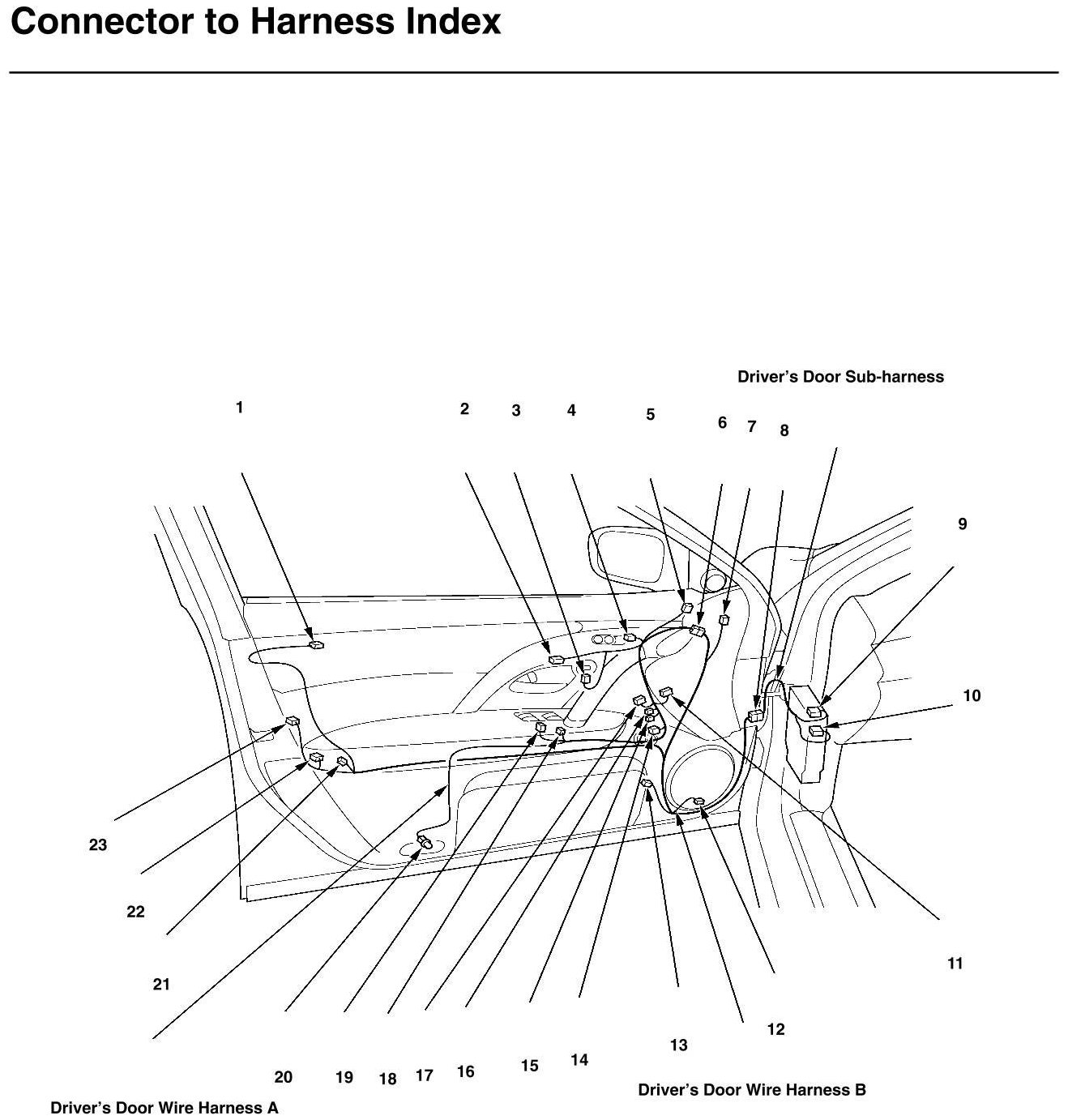

Driver's Door Wire Harness A, Driver's Door Wire Harness B And Driver's Door Subharness Connector And Harness Locations
Driver's Door Wire Harness A, Driver's Door Wire Harness B And Driver's Door Subharness Connector And Harness Locations
