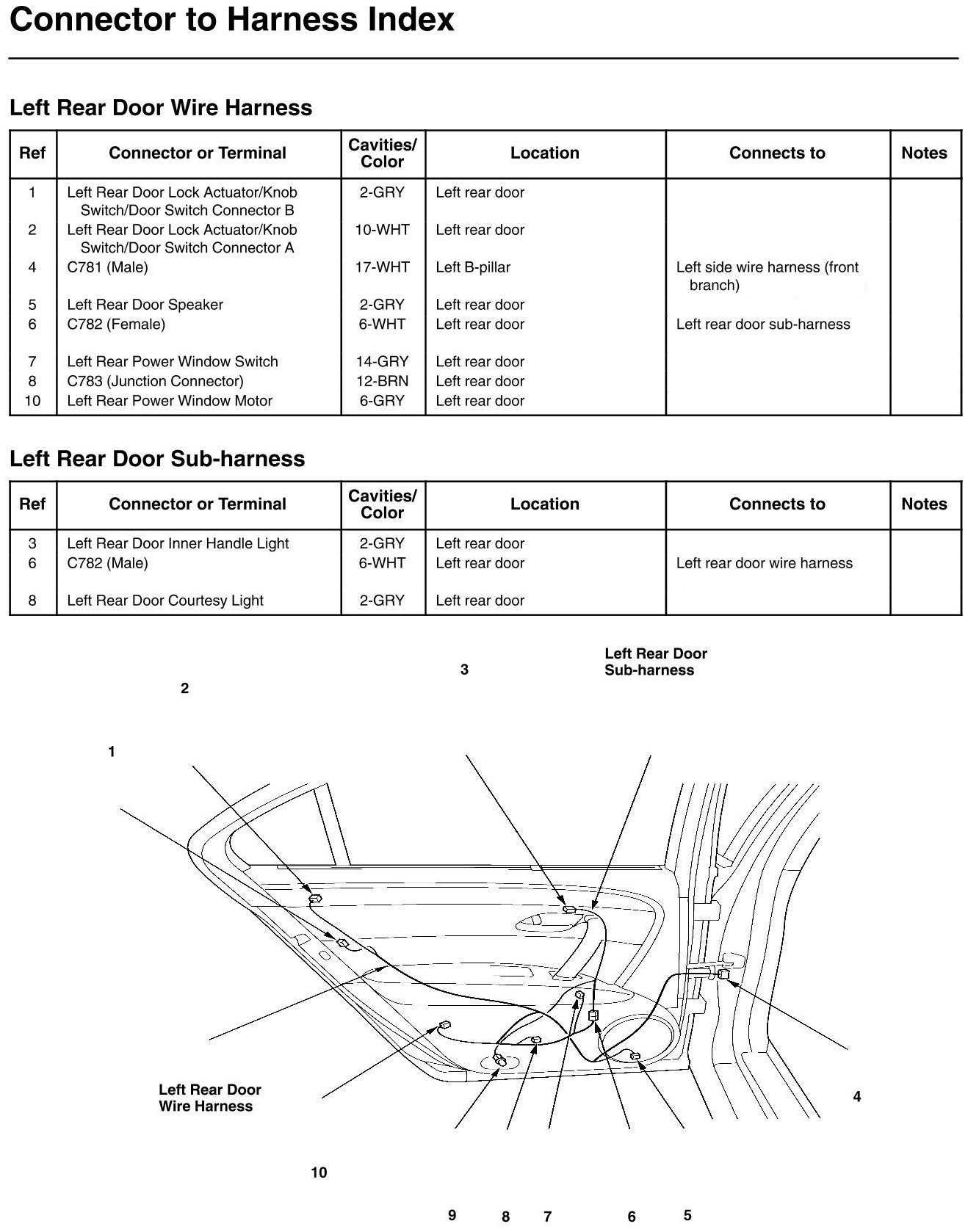

Left Rear Door Wire Harness And Left Rear Door Subharness Connector And Harness Locations
Left Rear Door Wire Harness And Left Rear Door Subharness Connector And Harness Locations
