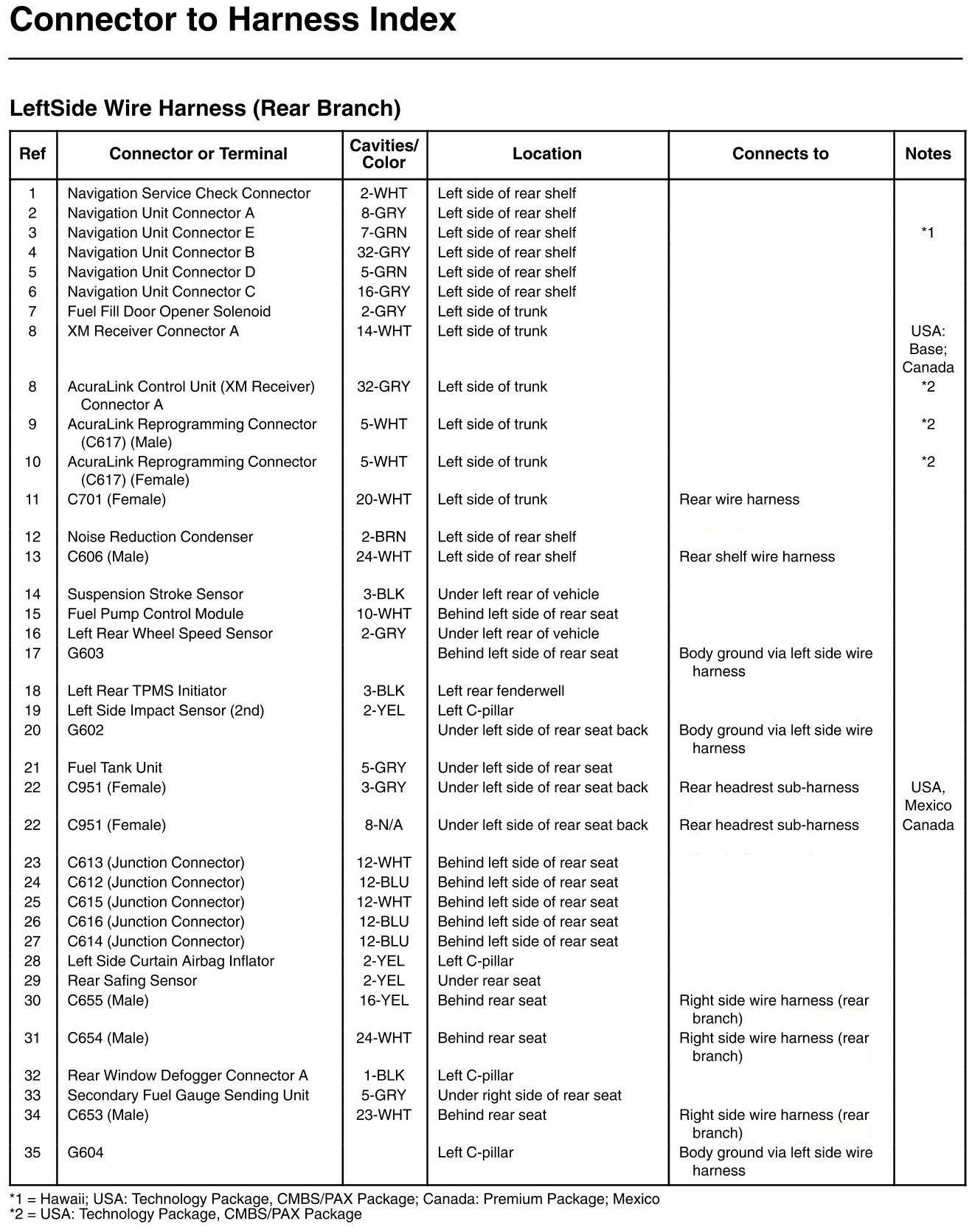

Left Side Wire Harness (Rear Branch) Connector and Harness Locations
Left Side Wire Harness (Rear Branch) Connector and Harness Locations
