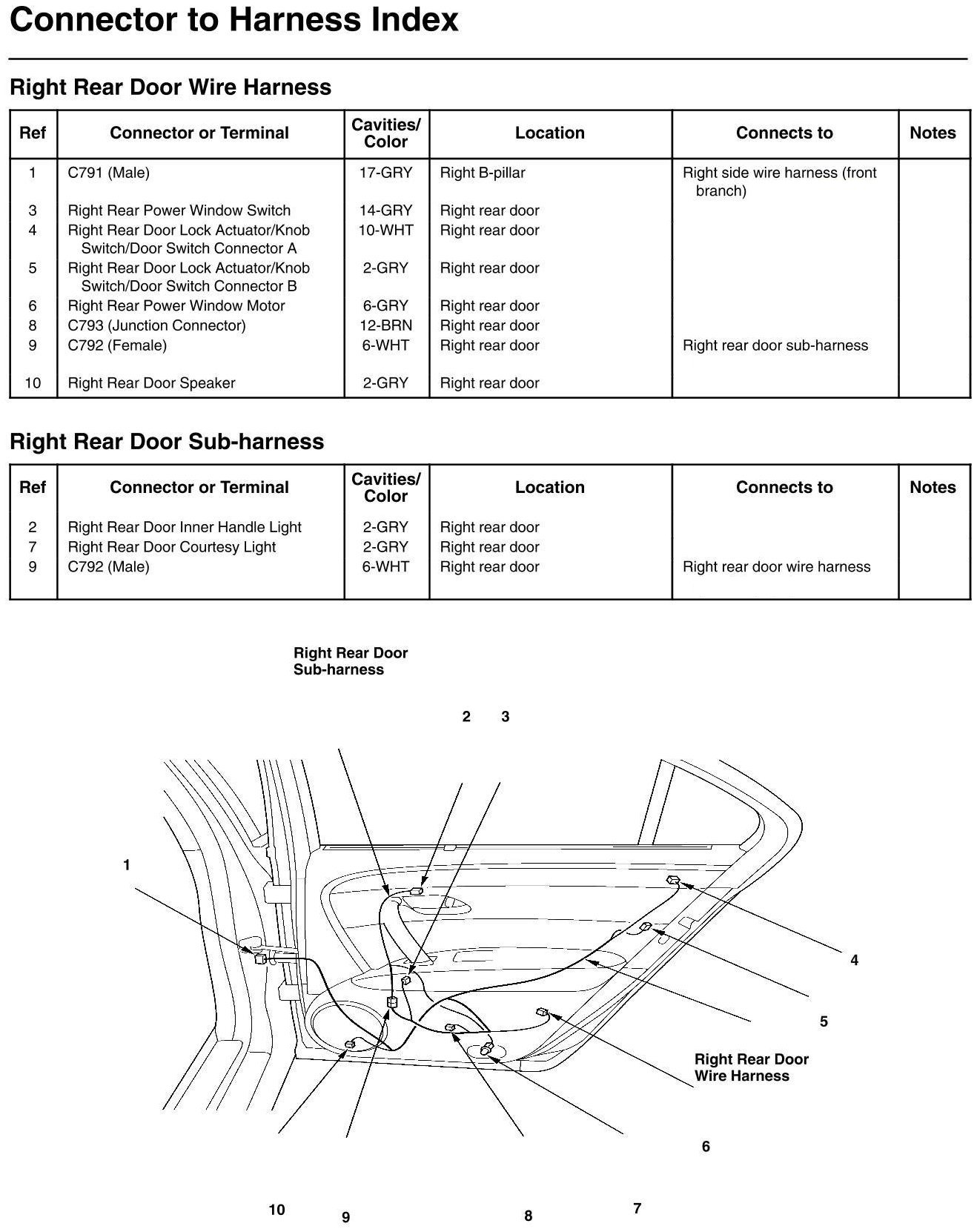

Right Rear Door Wire Harness And Right Rear Door Subharness Connector And Harness Locations
Right Rear Door Wire Harness And Right Rear Door Subharness Connector And Harness Locations
