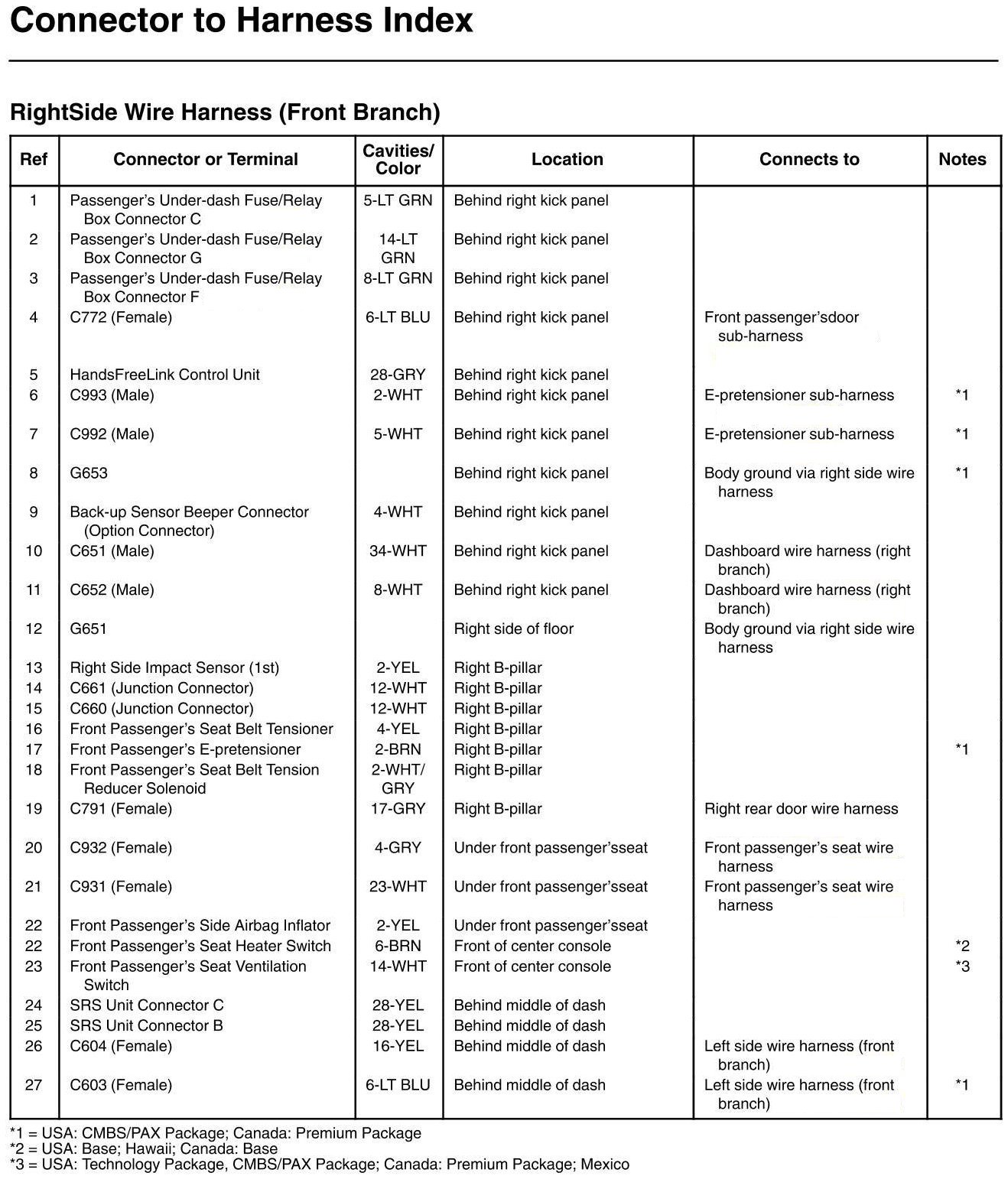

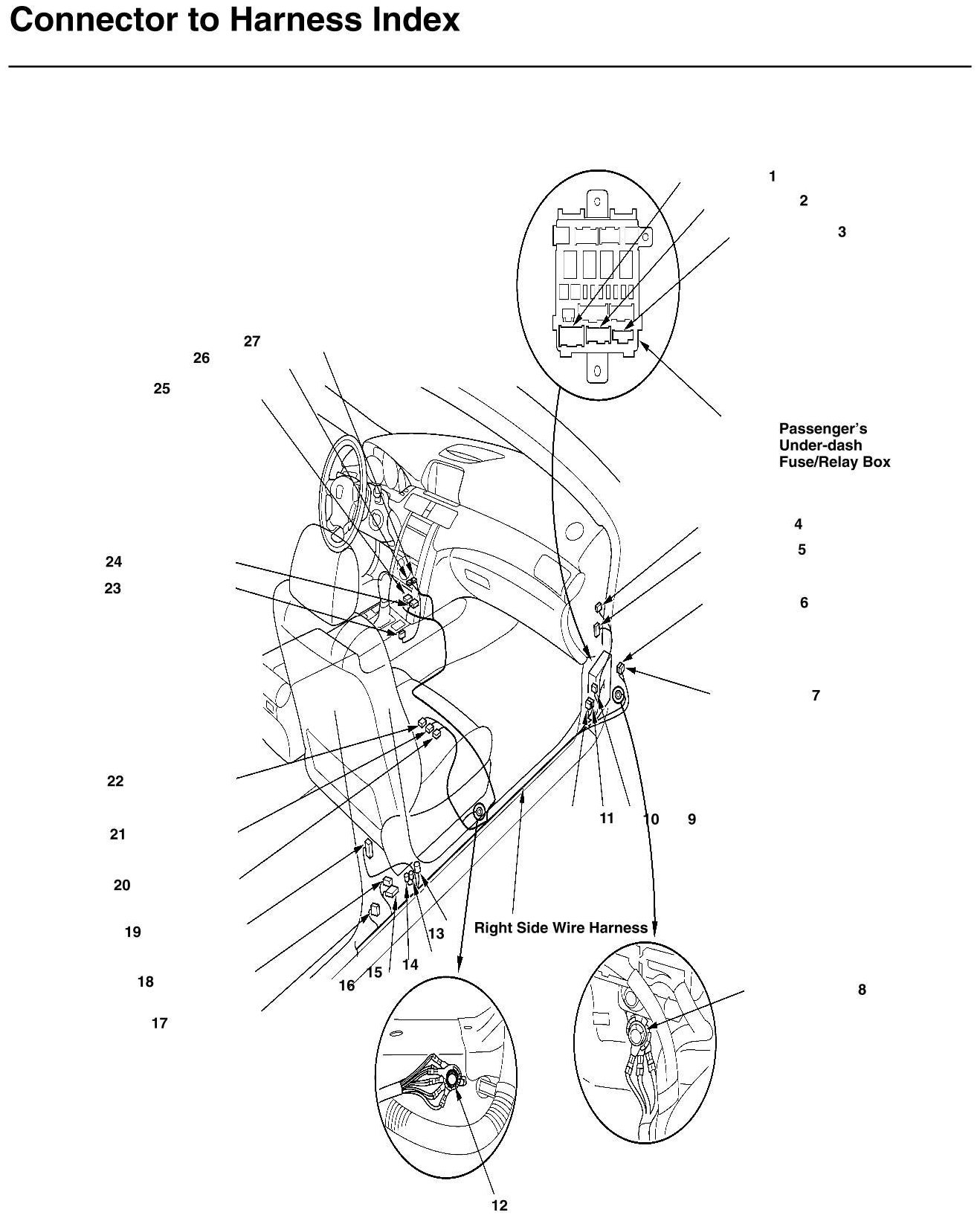

Right Side Wire Harness (Front Branch) Connector And Harness Locations
Right Side Wire Harness (Front Branch) Connector And Harness Locations
