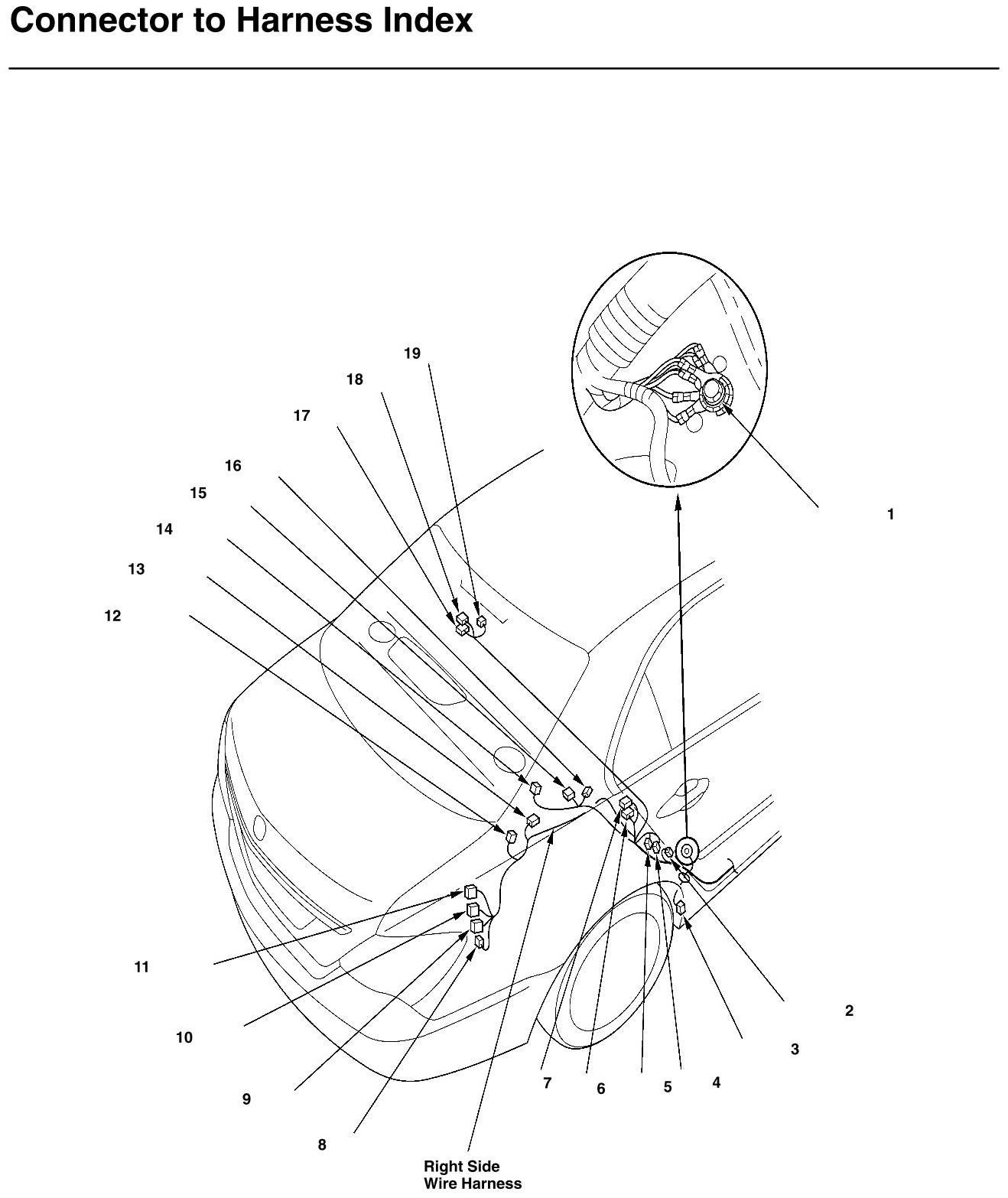

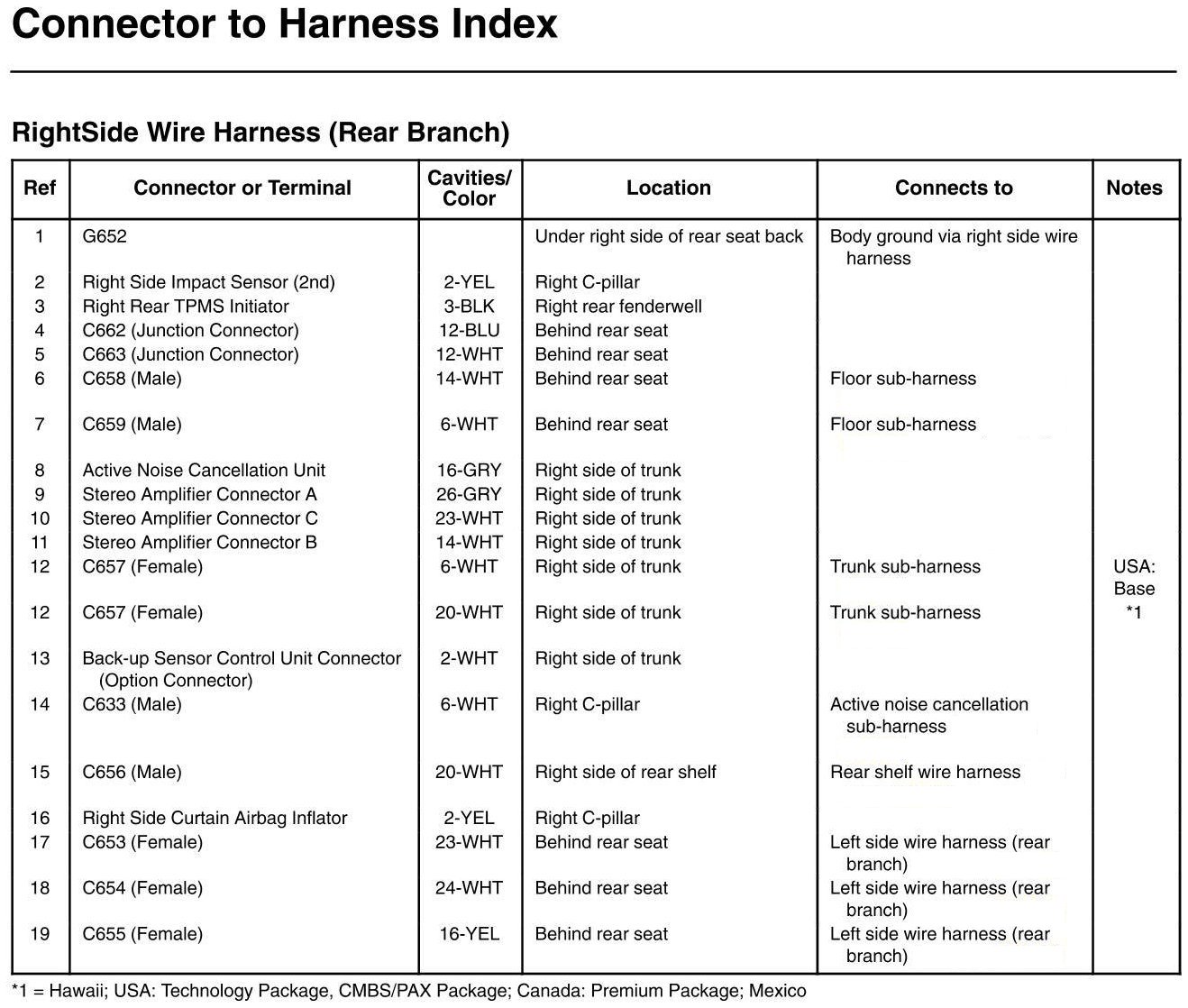

Right Side Wire Harness (Rear Branch) Connector And Harness Locations
Right Side Wire Harness (Rear Branch) Connector And Harness Locations
