Intake Manifold

Injector base 22 Nm (2.2 kgf-m, 16 ft lb)

Tighten the injector base mounting bolts/nuts in a crisscross pattern in three steps, beginning with the inner nuts

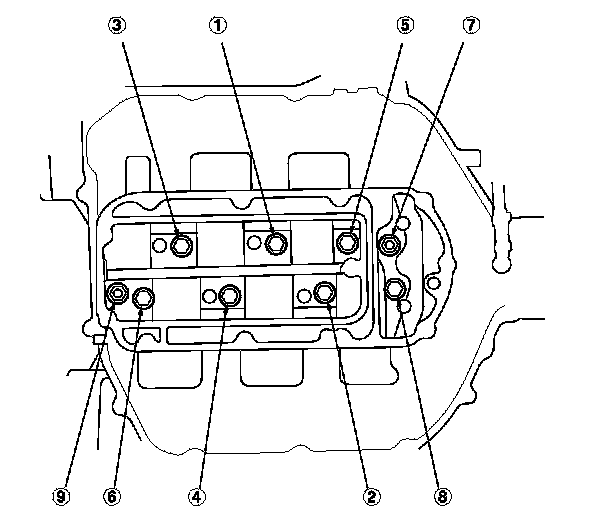

Intake manifold 22 Nm (2.2 kgf-m, 16 ft lb)





Tighten the bolts and nuts sequentially in three steps
