View 156 - Driver's Seat Back Inner Fan Motor Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite)

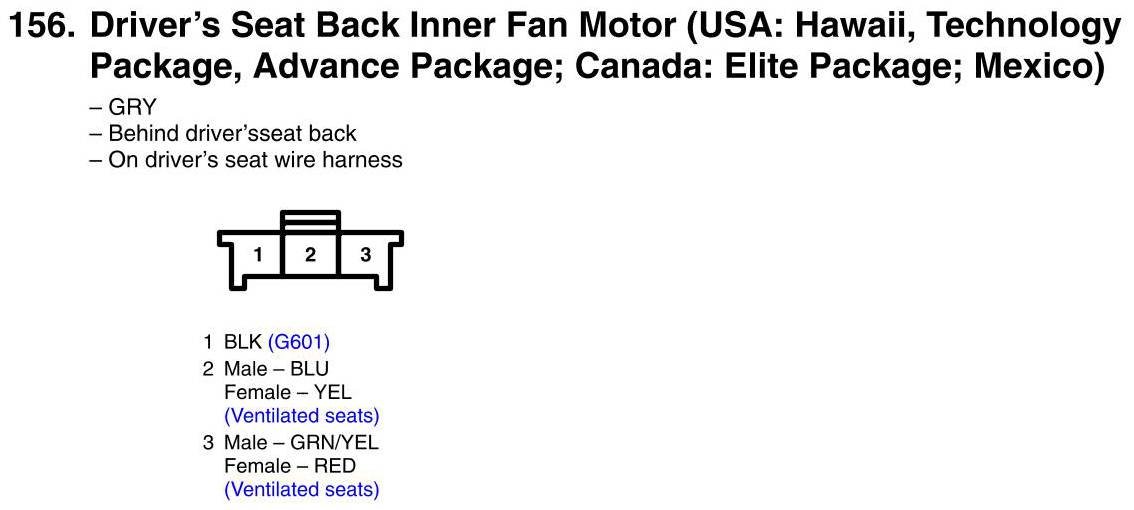

View 156 - Driver's Seat Back Inner Fan Motor Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
