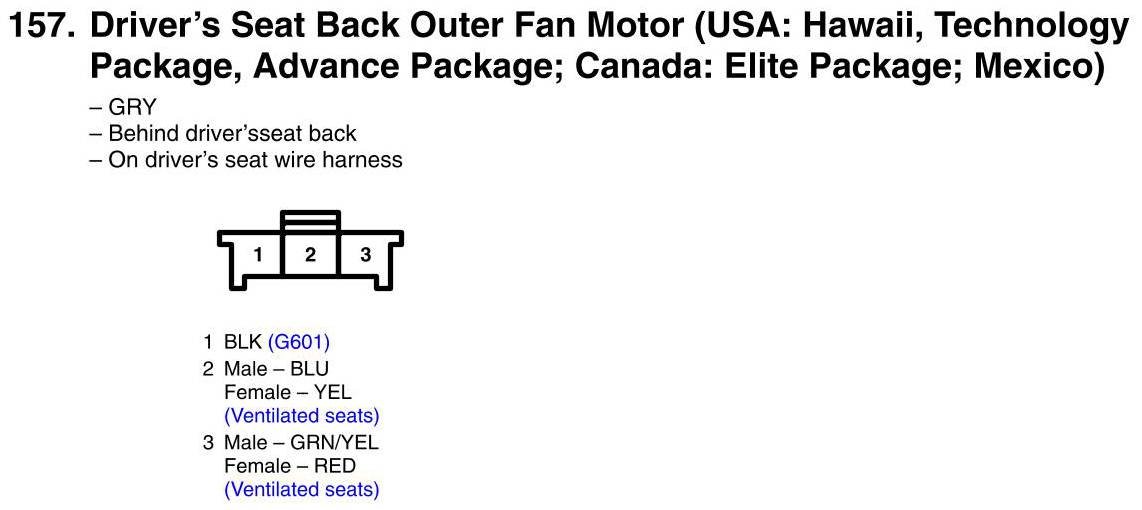

View 157 - Driver's Seat Back Outer Fan Motor Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite)

View 157 - Driver's Seat Back Outer Fan Motor Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
