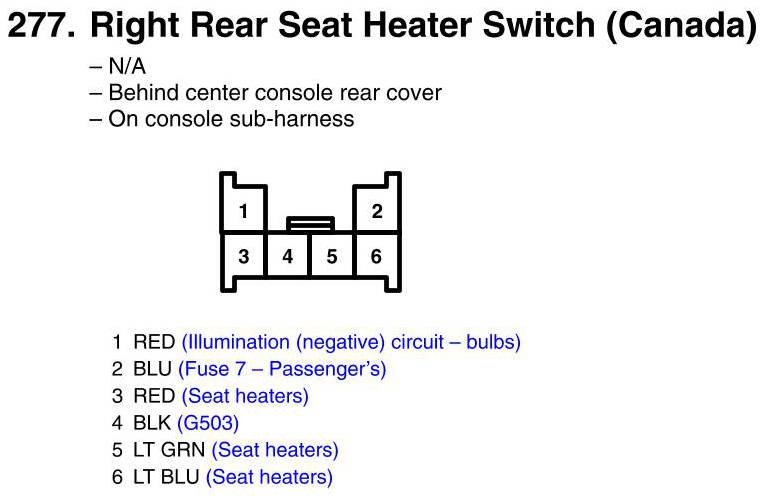

View 277 - Right Rear Seat Heater Switch Connector View (Canada)
View 277 - Right Rear Seat Heater Switch Connector View (Canada)
