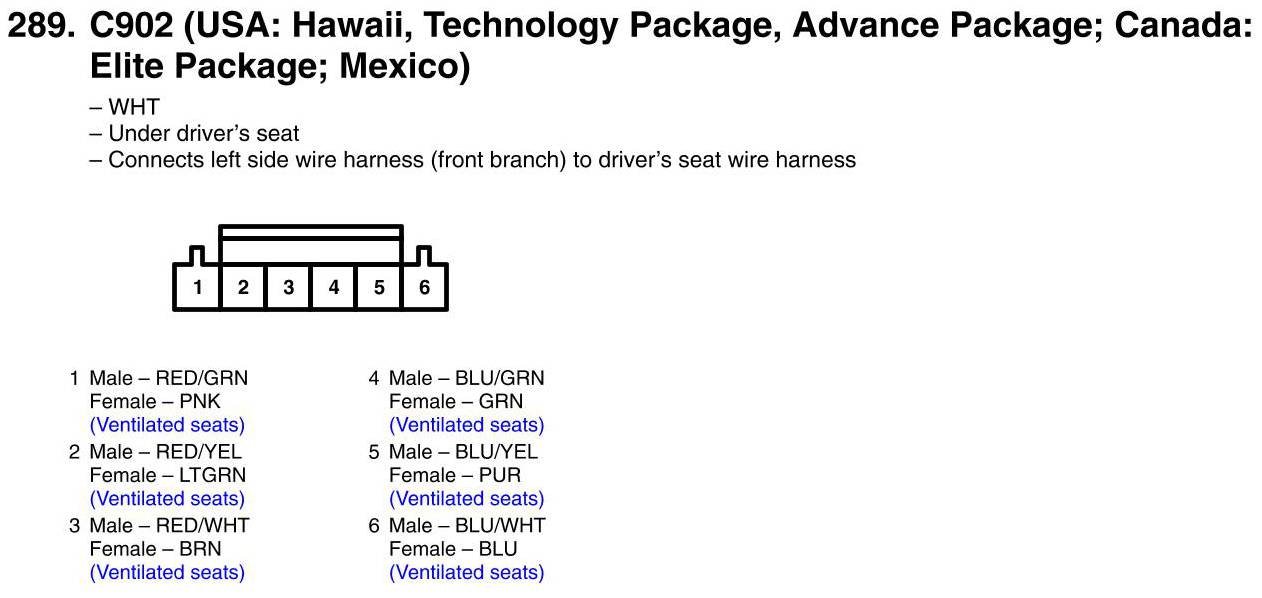

View 289 - C902 Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
View 289 - C902 Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
