Home >> Acura >> 2011 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 296 - Right Adaptive Front Lighting Gearbox Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Eli)

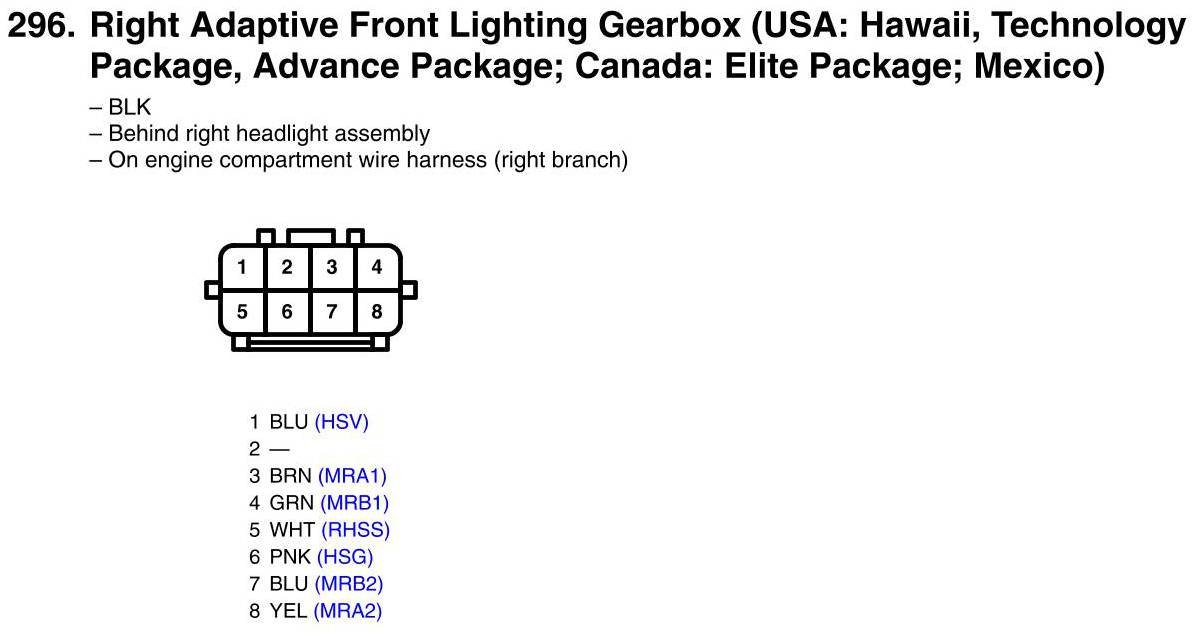

View 296 - Right Adaptive Front Lighting Gearbox Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Eli)

View 296 - Right Adaptive Front Lighting Gearbox Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
