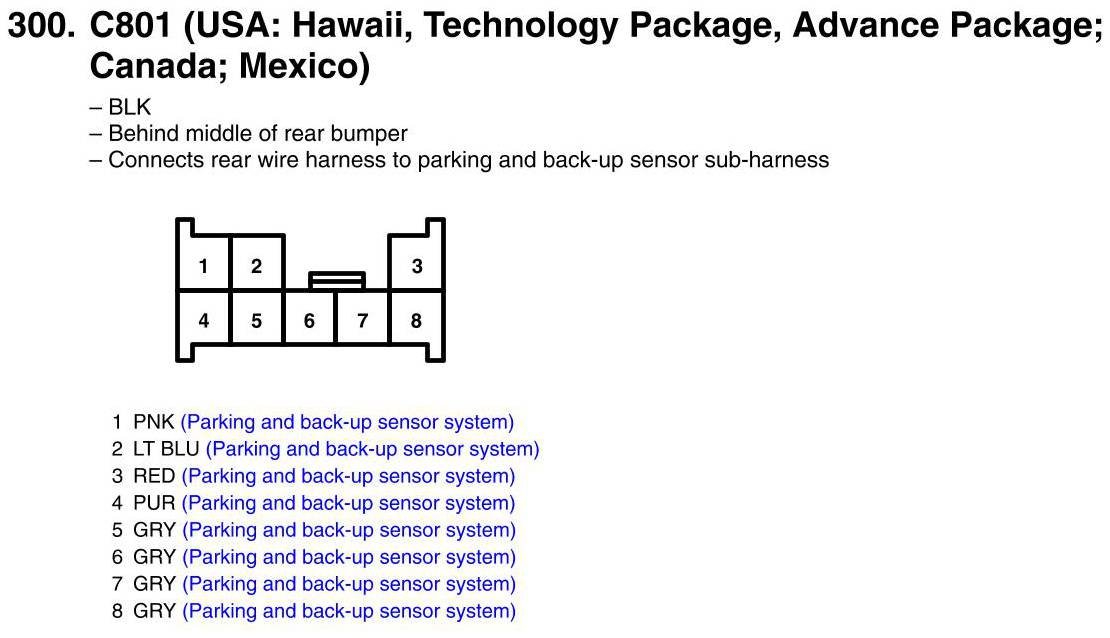

View 300 - C801 Connector View (USA: Hawaii, Technology Package, Advance Package; Canada; Mexico)
View 300 - C801 Connector View (USA: Hawaii, Technology Package, Advance Package; Canada; Mexico)
