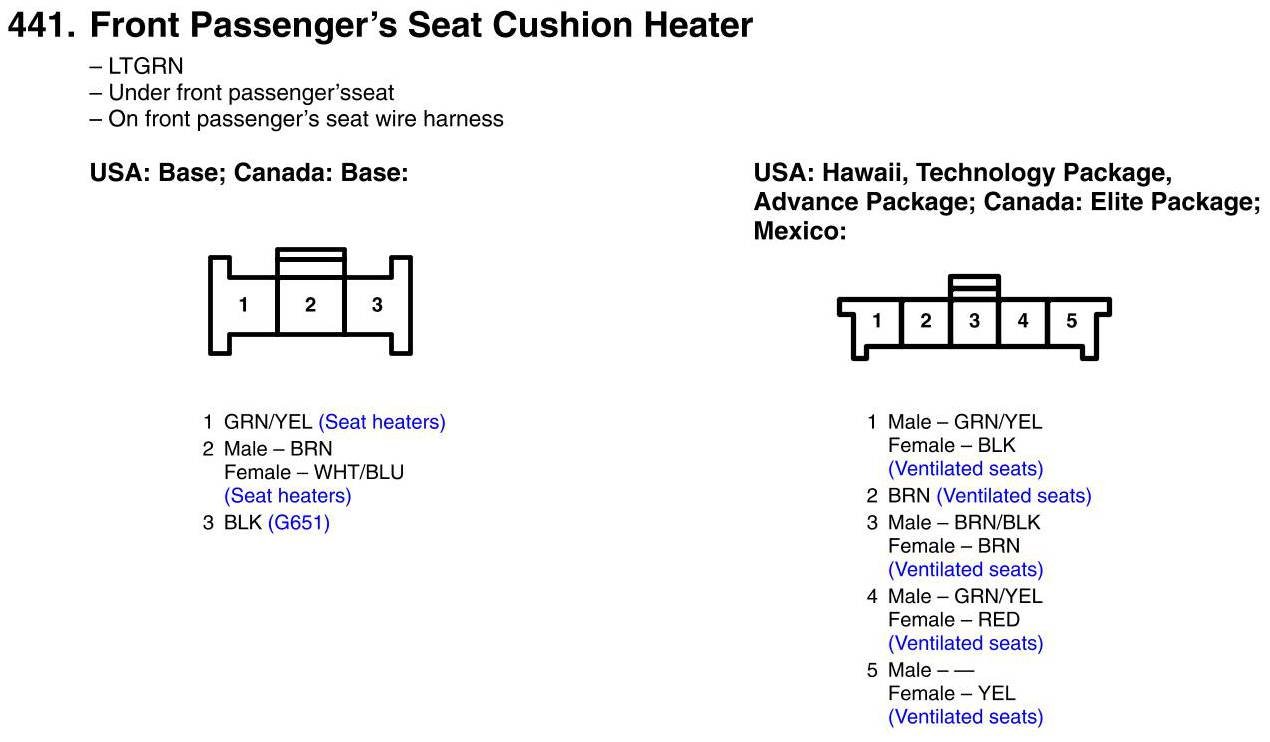

View 441 - Front Passenger's Seat Cushion Heater Connector View
View 441 - Front Passenger's Seat Cushion Heater Connector View
