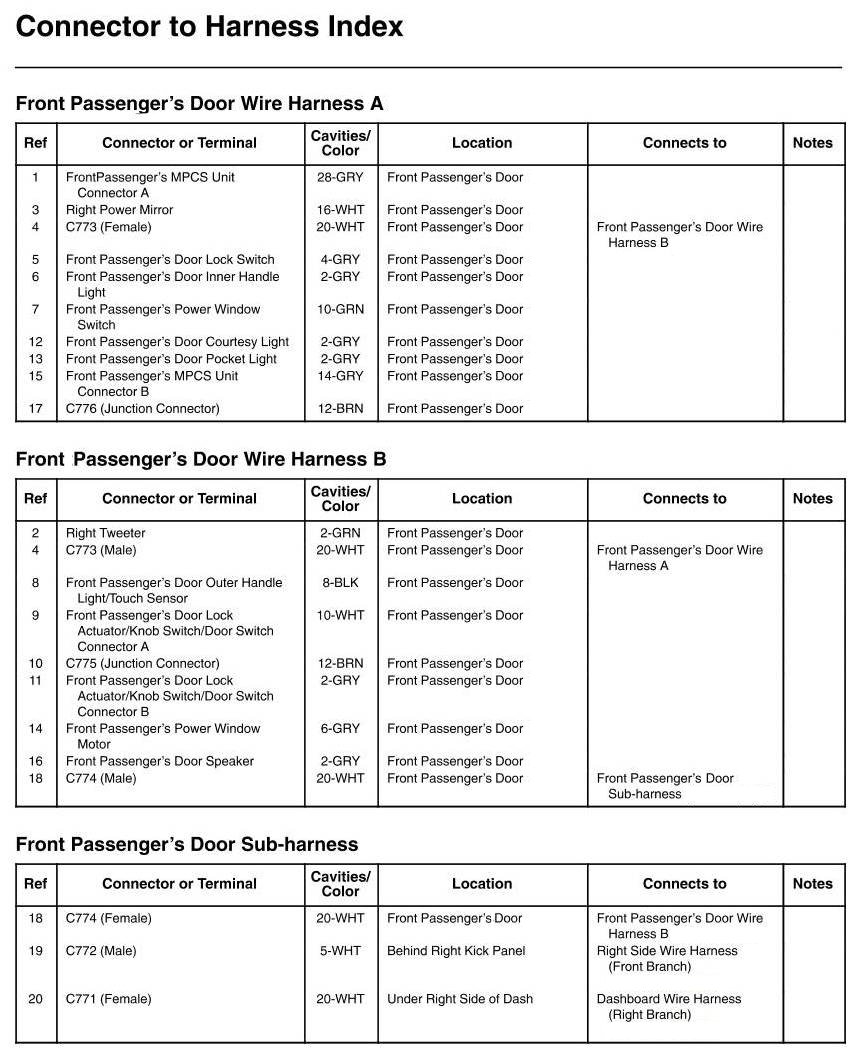

Front Passenger's Door Wire Harness A, Front Passenger's Door Wire Harness B, and Front Passenger's Door Sub-harness Connector

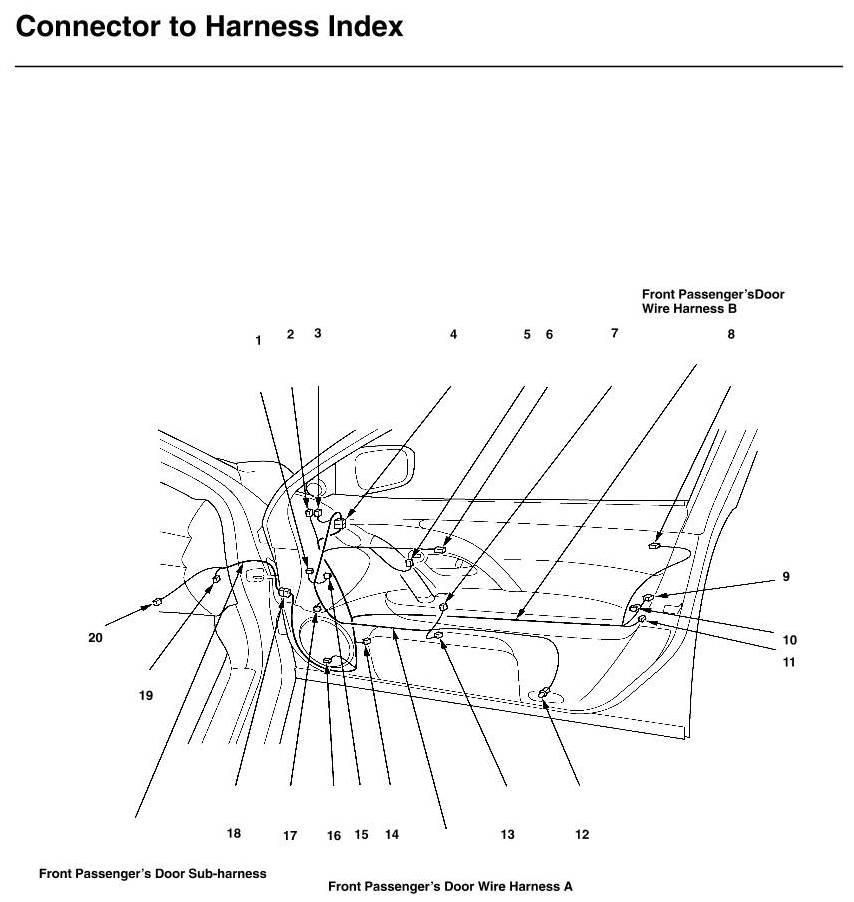

Front Passenger's Door Wire Harness A, Front Passenger's Door Wire Harness B, and Front Passenger's Door Sub-harness Connector and Harness Locations
