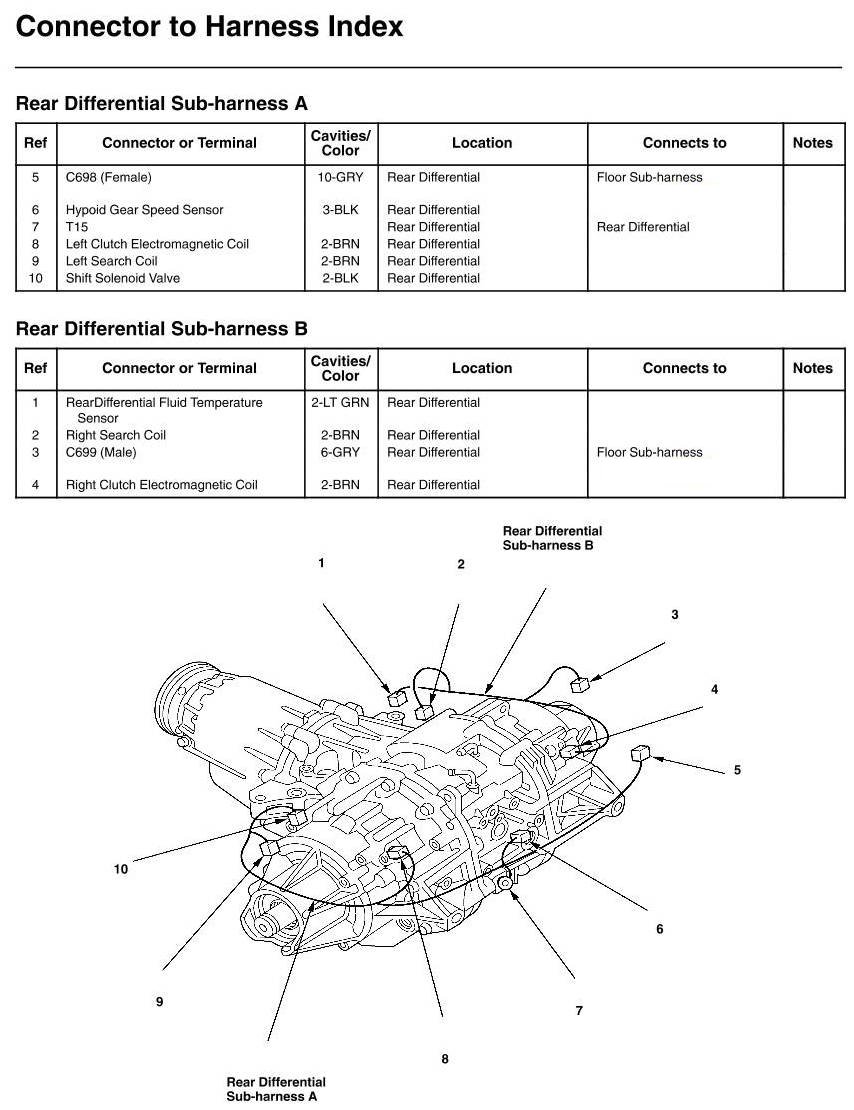

Rear Differential Subharness A And Rear Differential Subharness B Connector And Harness Locations
Rear Differential Subharness A And Rear Differential Subharness B Connector And Harness Locations
