Driver's Dashboard Undercover Removal / Installation

Driver's Dashboard Undercover Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program; 888-424-6857

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the dashboard or the related parts.

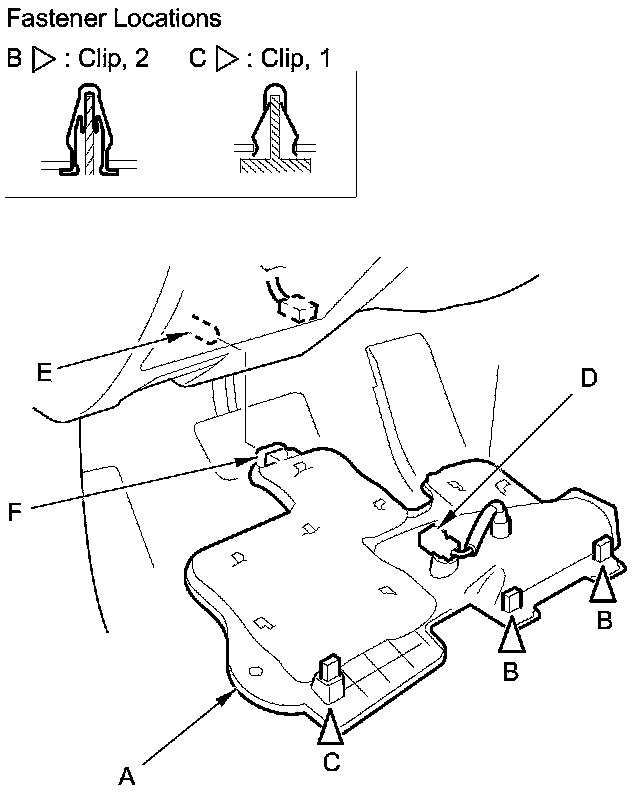

1. Remove the driver's dashboard undercover (A).

1. Gently pull down the front edge of the undercover to detach the clips (B, C).

2. Disconnect the footwell light connector (D).

3. Pull away the undercover to release the pin (E) from the holder (F).





2. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure the holder of the cover is installed securely to the pin.
- Make sure the connector is plugged in properly.
