Headlamp Washer Motor: Testing and Inspection

Headlight Washer Motor Test/Replacement

Canada models

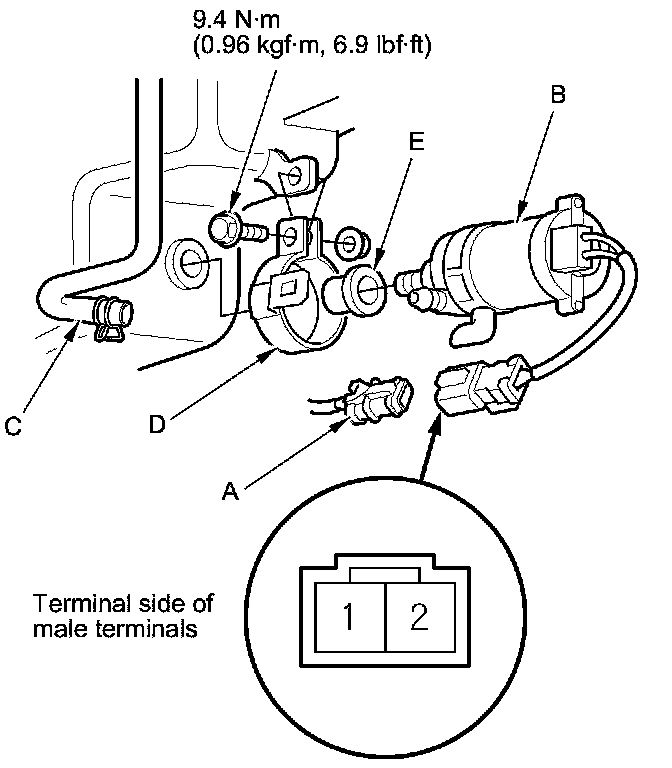

1. Pull back the front section of the right front inner fender Front Inner Fender Replacement.

2. Disconnect the 2P connector (A) from the washer motor (B).





3. Test the motor by connecting battery power to terminal No. 1 and grounding terminal No. 2 of the headlight washer motor. The motor should run.

- If the motor does not run smoothly, replace it.
- If the motor runs smoothly, but little or no washer fluid is pumped, check for a disconnected or blocked washer hose, or a clogged washer motor outlet.

4. Disconnect the tube (C), then remove the bolt and bracket (D).

5. Disconnect the headlight washer motor from the washer reservoir.

6. Install the headlight washer motor in the reverse order of removal. If the gasket (E) is damaged, replace it.
