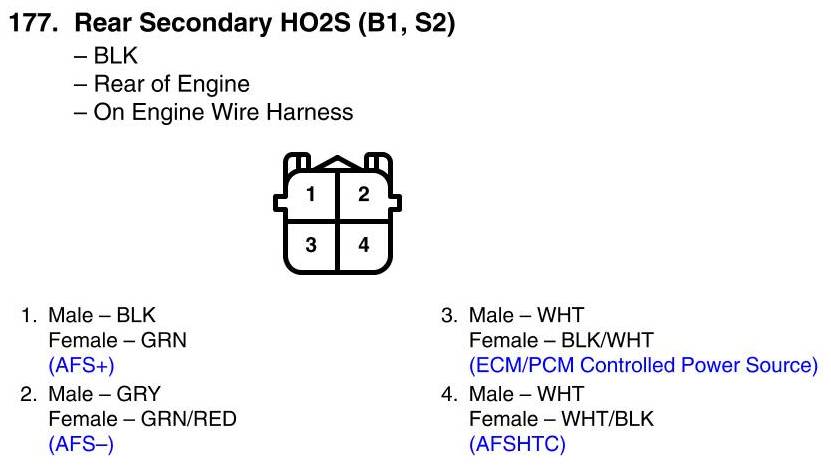

View 177 - Rear Secondary HO2S (B1, S2) Connector View
View 177 - Rear Secondary HO2S (B1, S2) Connector View
