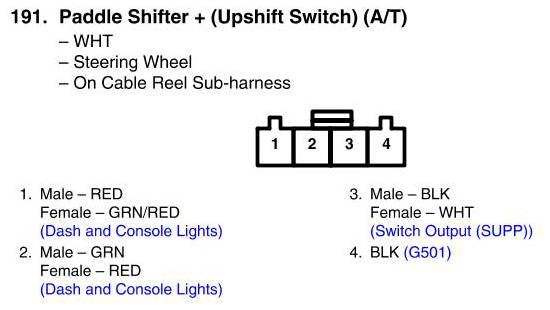

View 191 - Paddle Shifter + (Upshift Switch) Connector View (A/T)
View 191 - Paddle Shifter + (Upshift Switch) Connector View (A/T)
