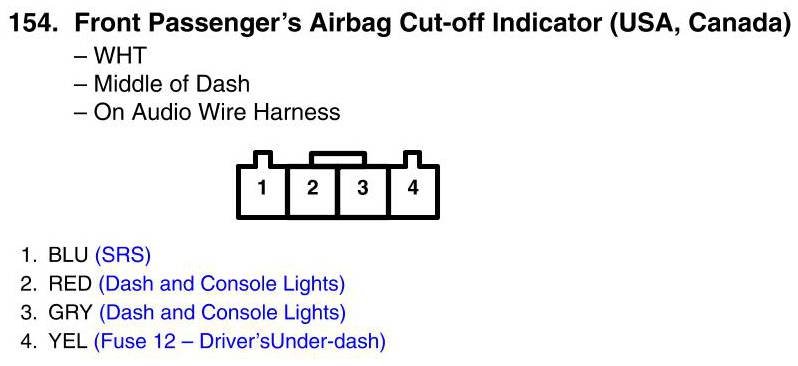

View 154 - Front Passenger's Airbag Cut-off Indicator Connector View (USA, Canada)
View 154 - Front Passenger's Airbag Cut-off Indicator Connector View (USA, Canada)
