Home >> Acura >> 2011 >> TSX Sedan V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 157 - Front Passenger's Seat Heater Connector View

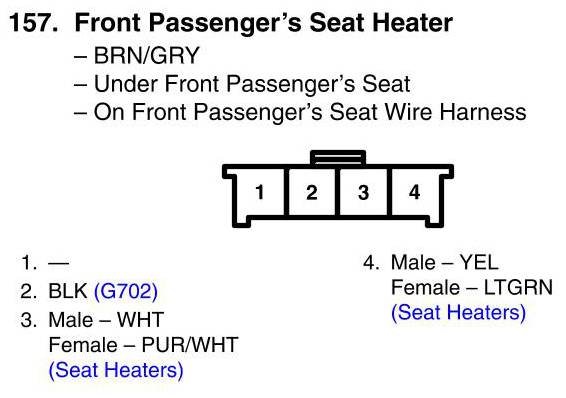

View 157 - Front Passenger's Seat Heater Connector View
