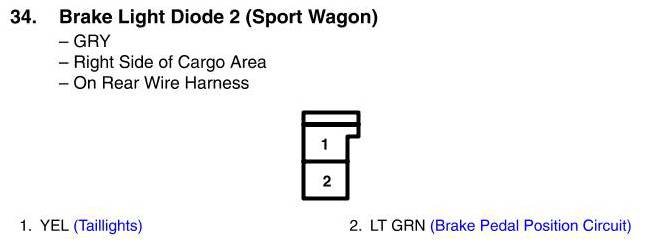

View 34 - Brake Light Diode 2 Connector View (Sport Wagon)
View 34 - Brake Light Diode 2 Connector View (Sport Wagon)
