Driver's Outer Dashboard Trim Removal/Installation

Driver's Outer Dashboard Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

- Take care not to scratch the dashboard or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

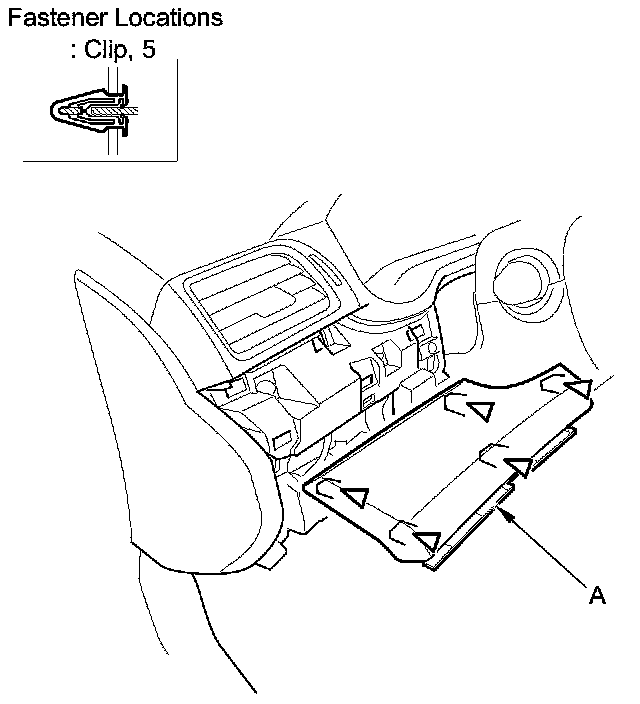

2. Detach the clips, then remove the driver's outer dashboard trim (A).





3. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
