Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

USA Models

1. Remove the front section of right front inner fender Front Inner Fender Replacement.

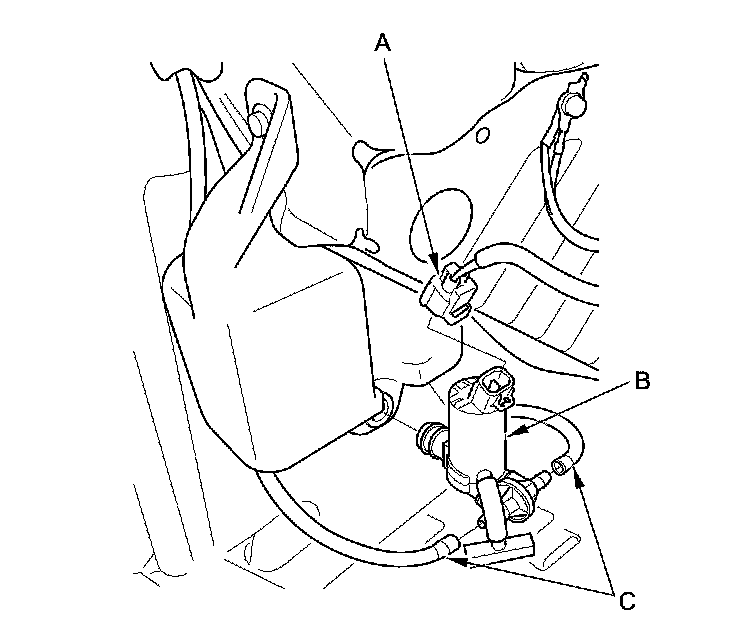

2. Disconnect the 2P connector(s) (A) from the windshield washer motor (B).

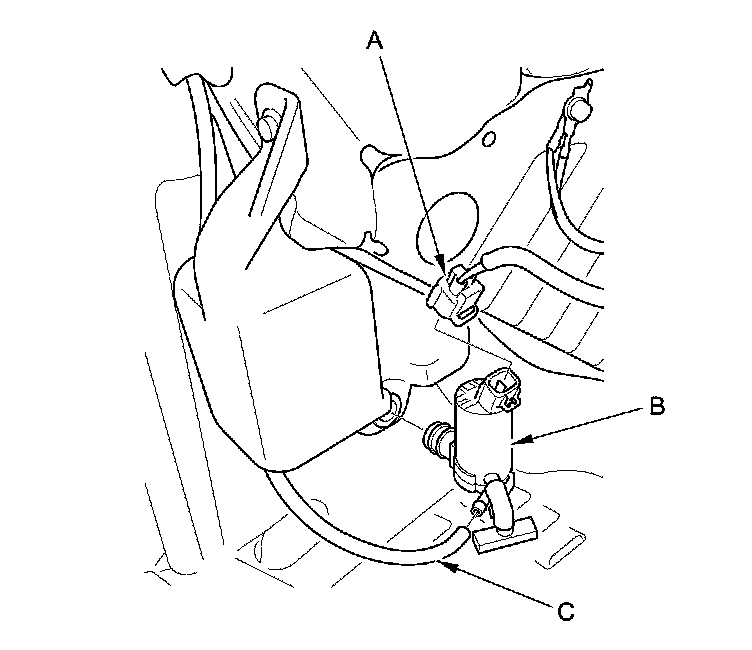

Sedan





Sport Wagon





3. Disconnect the washer tube (C), then if necessary, remove the washer motor.

NOTE: Fluid may flow out of the opening.

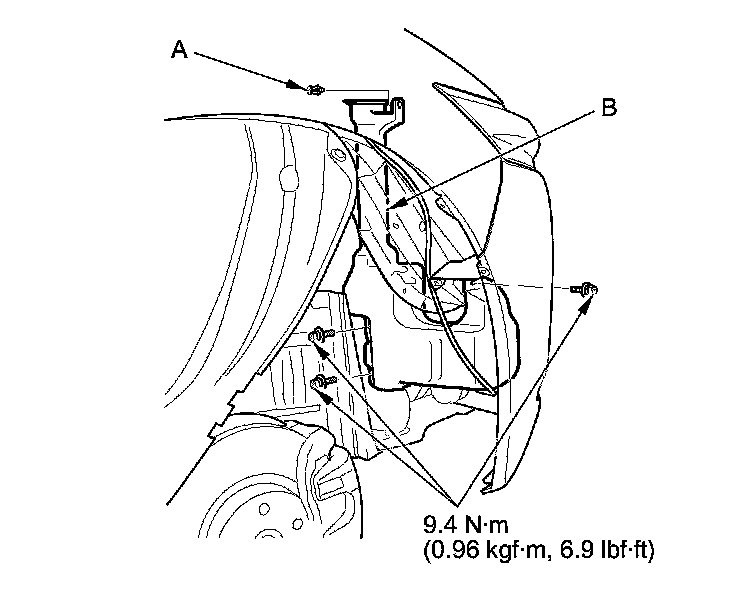

4. Remove the clip (A) and three bolts from the washer reservoir (B).





5. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.

Canada Models

1. Remove the front section of right front inner fender Front Inner Fender Replacement.

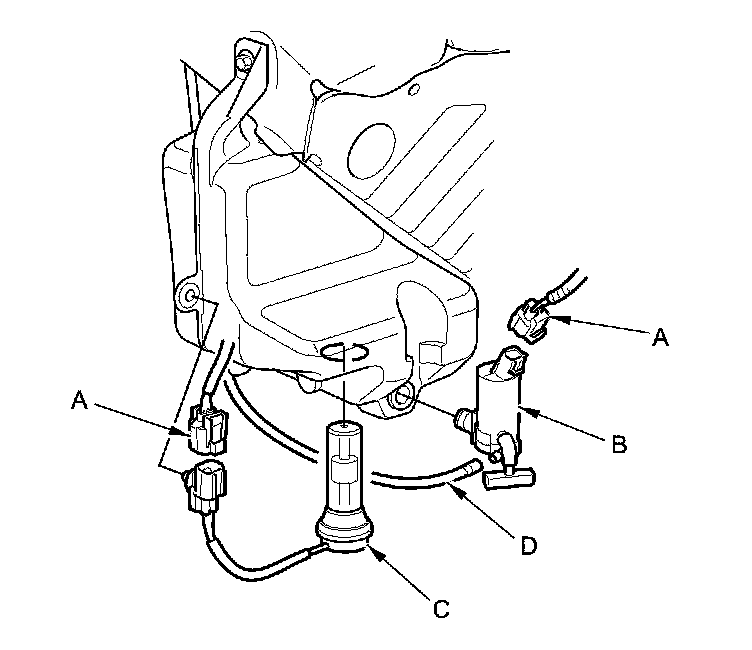

2. Disconnect the 2P connector(s) (A) from the windshield washer motor (B) and the washer fluid level switch (C).









3. Disconnect the washer tube (D), then remove the washer motor and the washer fluid level switch.

NOTE: Fluid may flow out of the opening.

4. Remove the clip (A) and three bolts from the washer reservoir (B).





5. Install the washer reservoir in the reverse order of removal. Check the washer motor operation.
