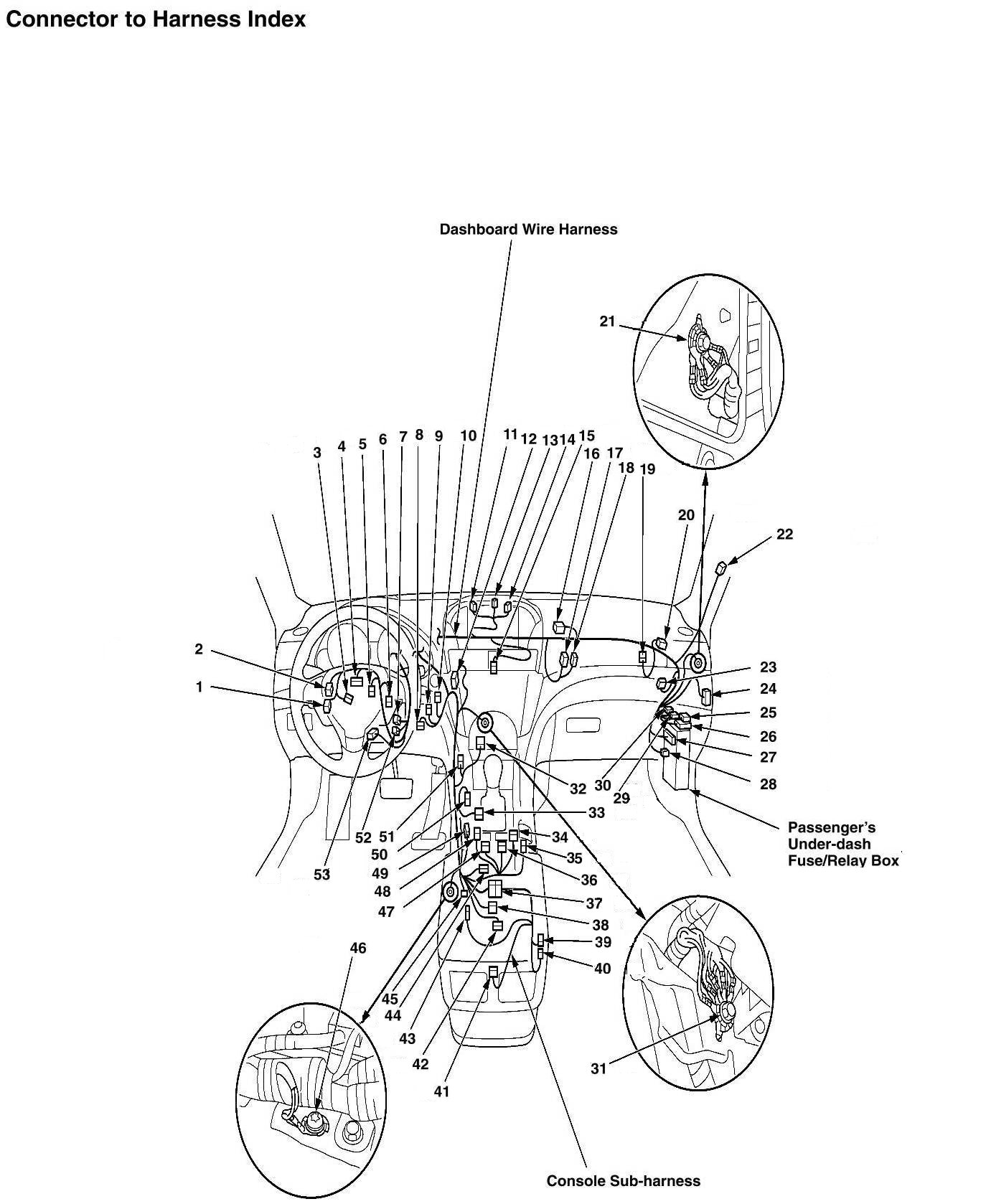

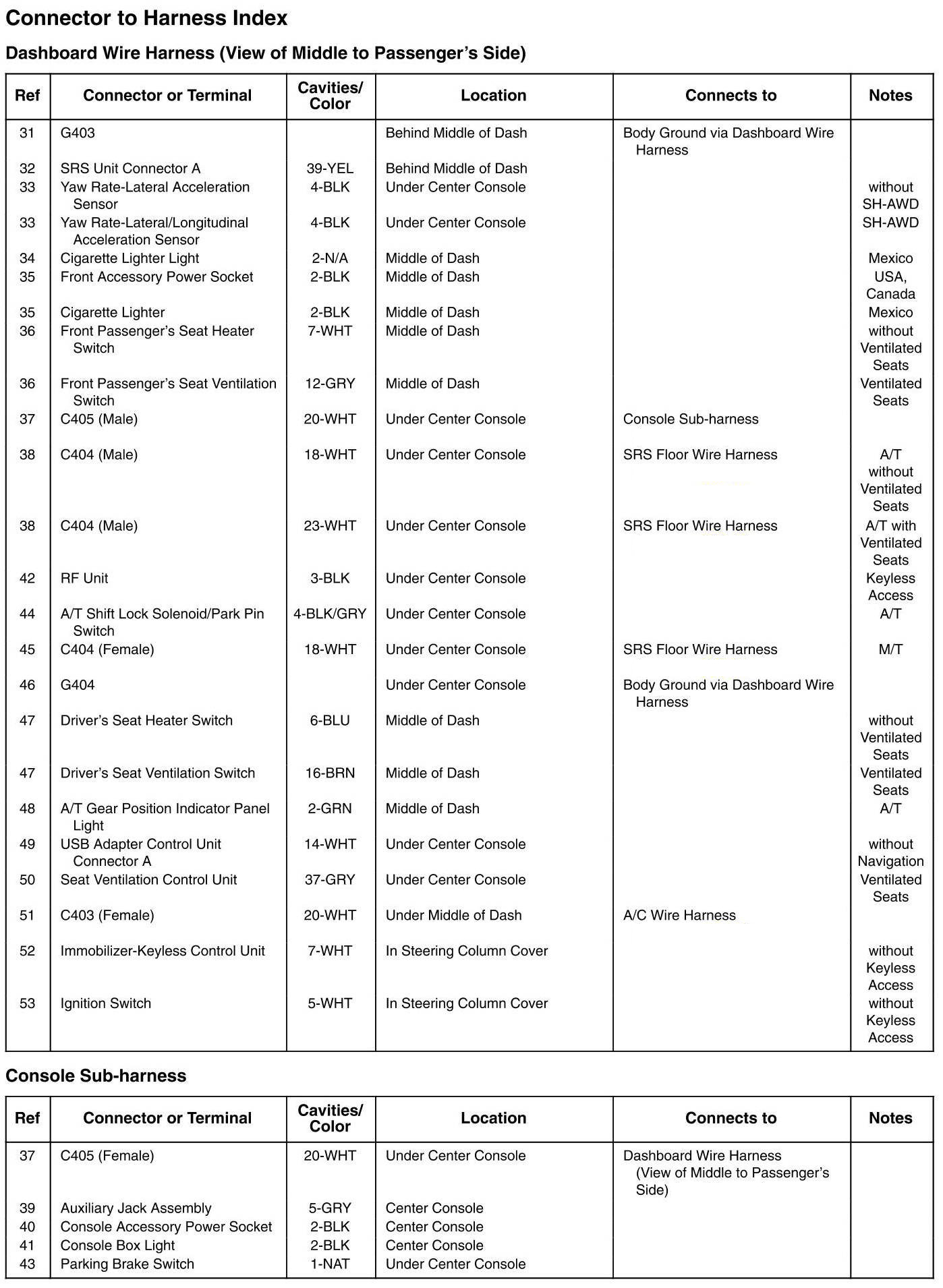

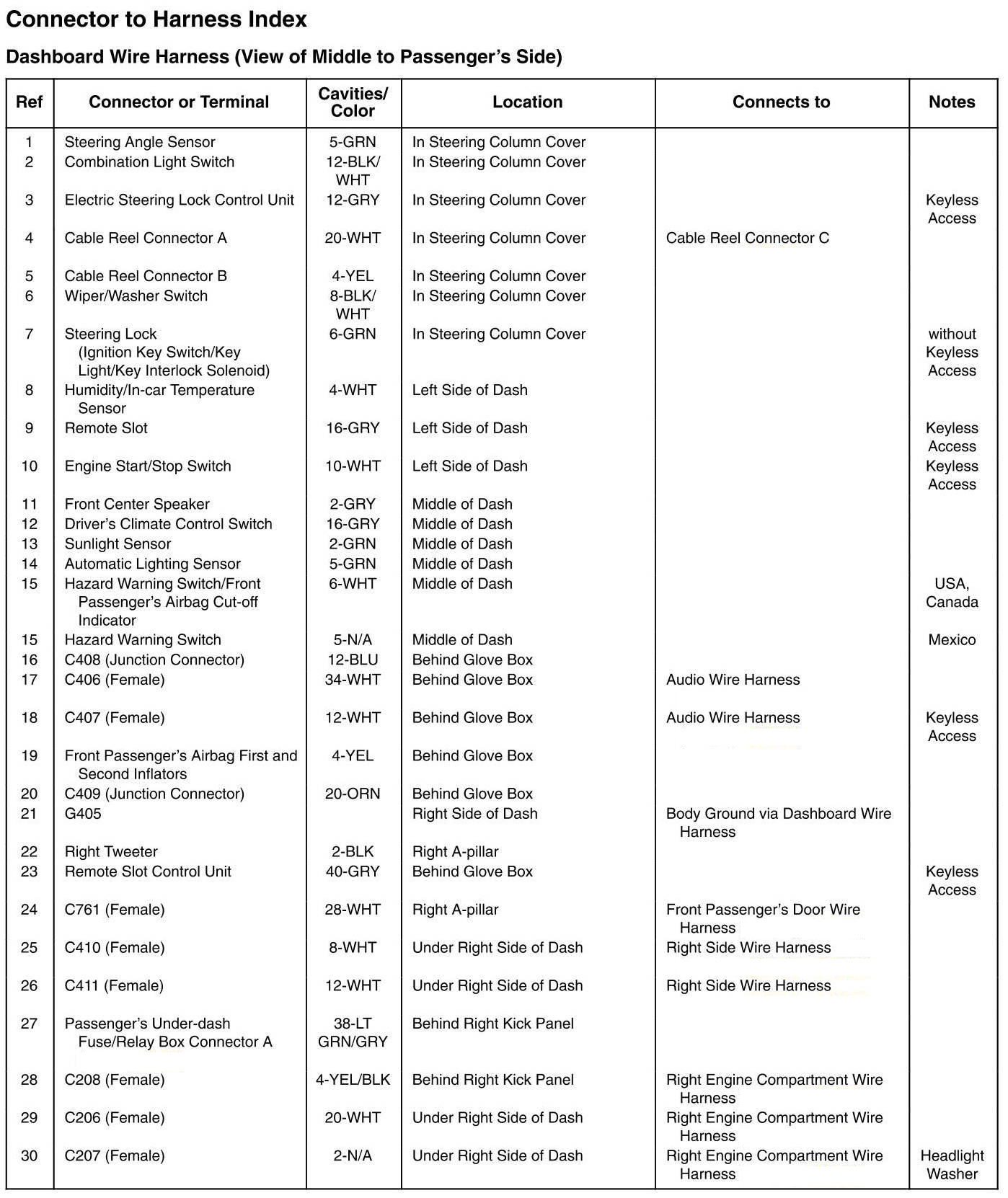

Dashboard Wire Harness (View of Middle to Passenger's Side) And Console Sub-Harness Connector And Harness Locations
Dashboard Wire Harness (View of Middle to Passenger's Side) And Console Sub-Harness Connector And Harness Locations
