Side Wire Harness
Side Wire Harness
Connector and Harness Locations

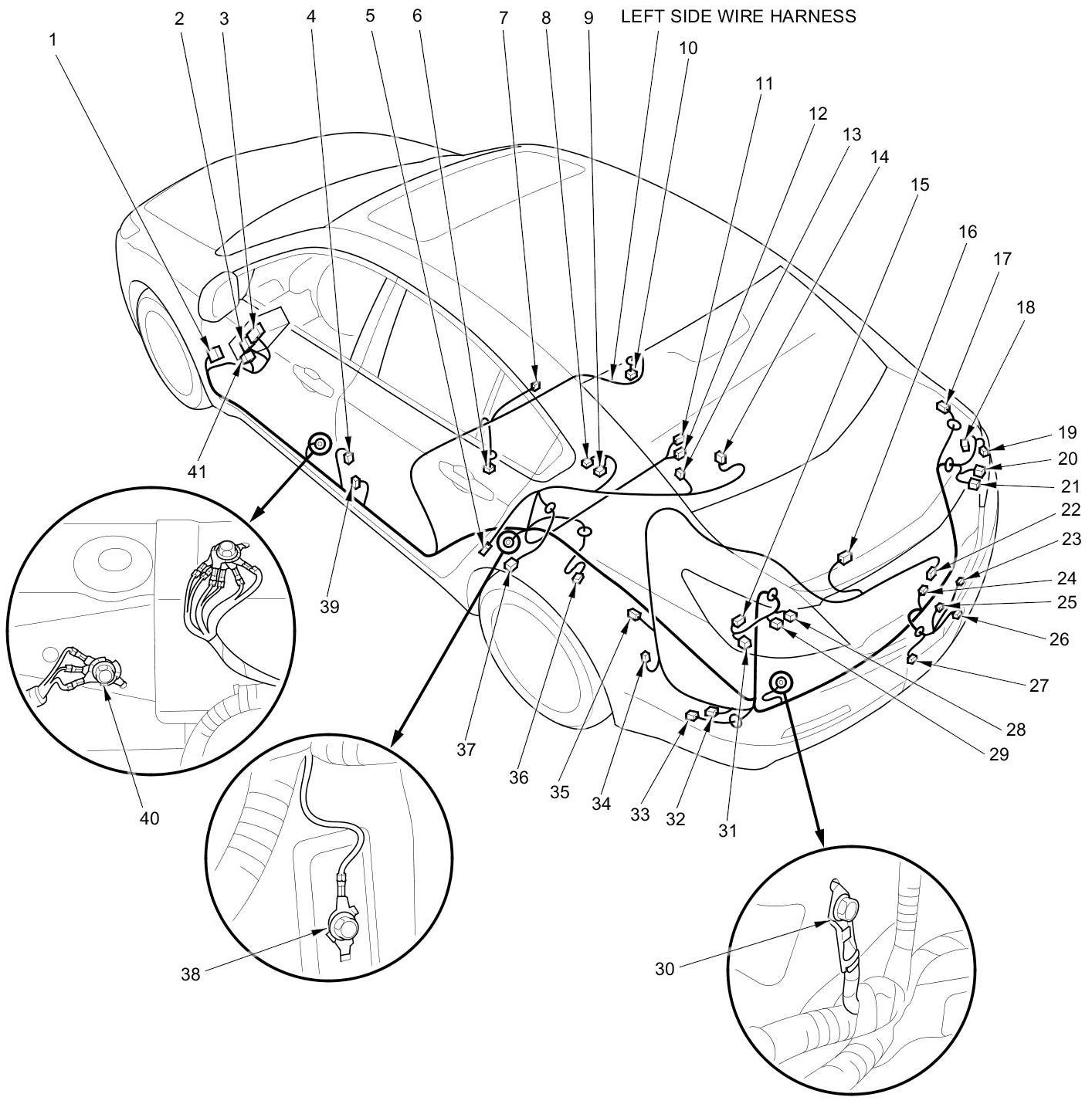

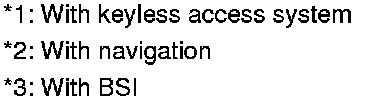

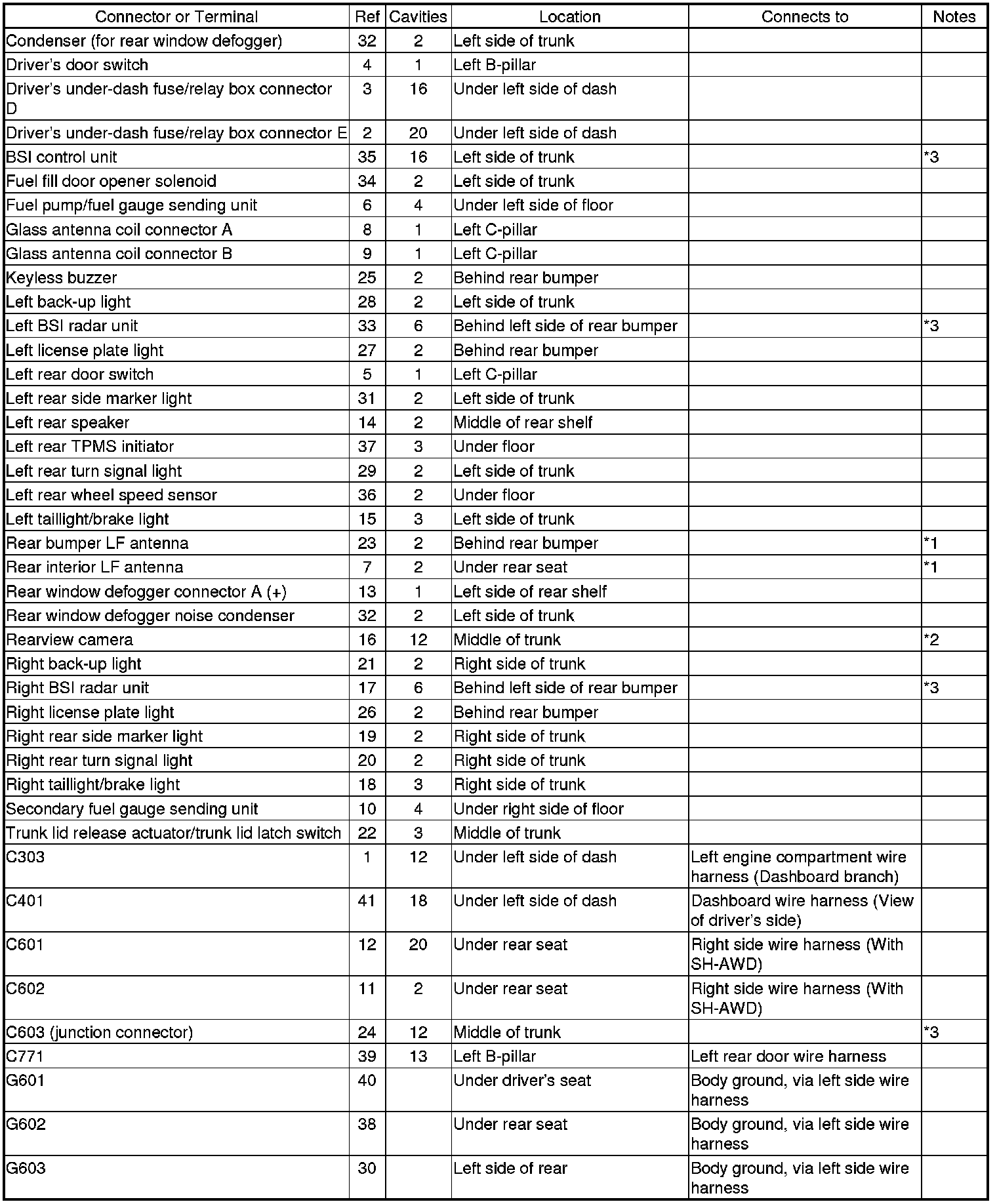

Left Side Wire Harness (With SH-AWD)

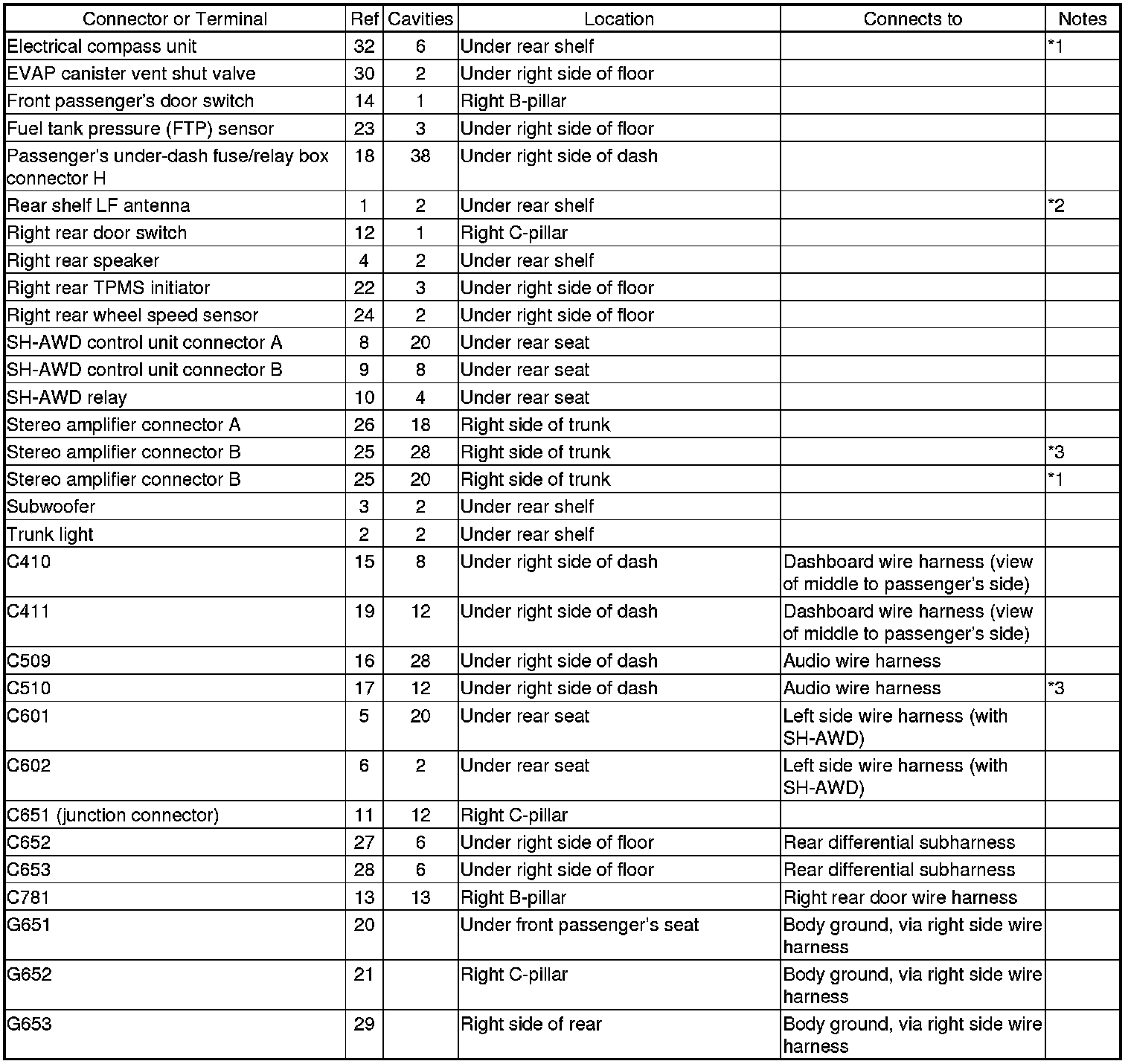

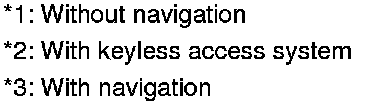

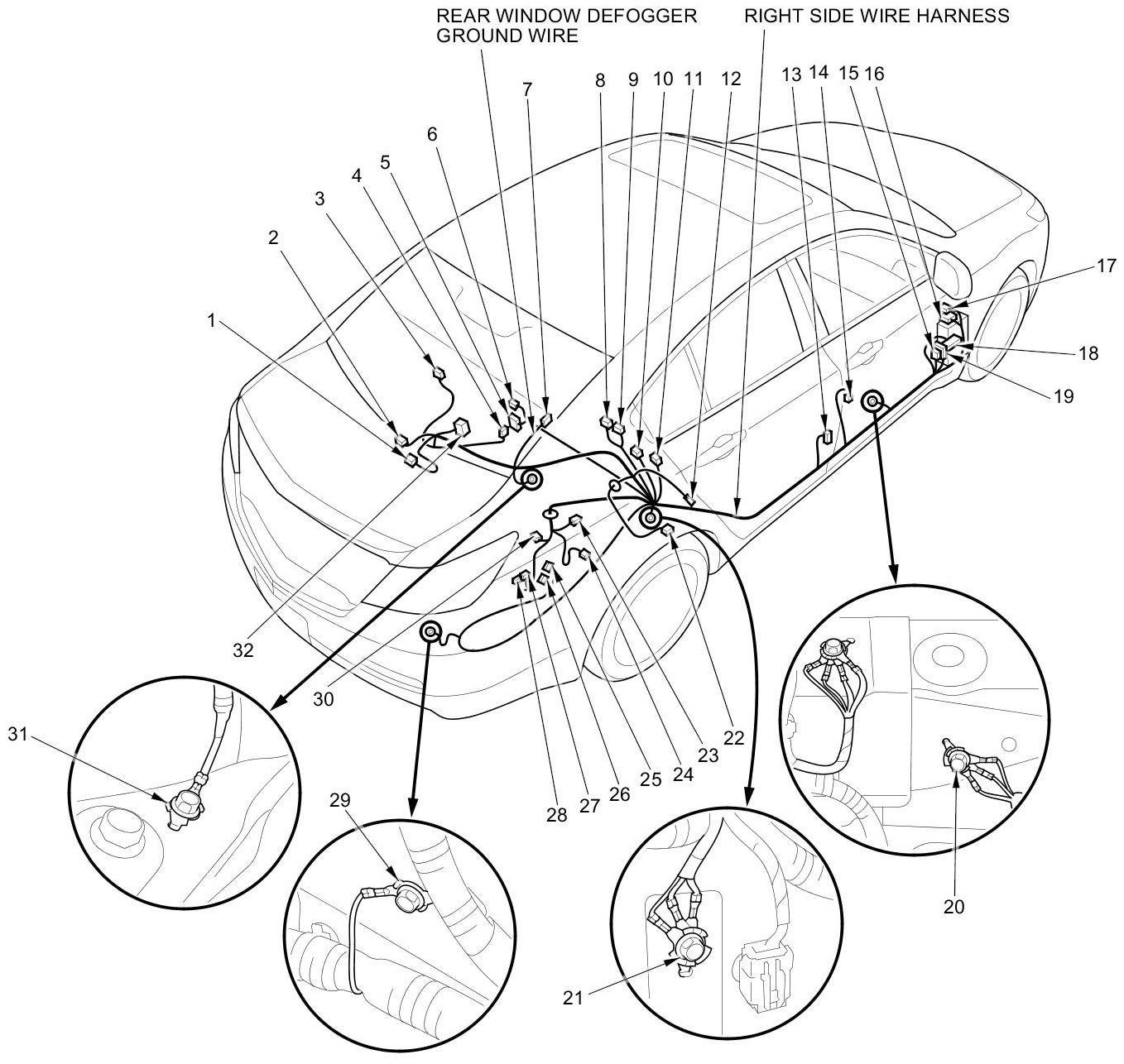

Right Side Wire Harness (With SH-AWD)
