Home
>>
Acura
>>
2012
>>
TSX Sport Wagon L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

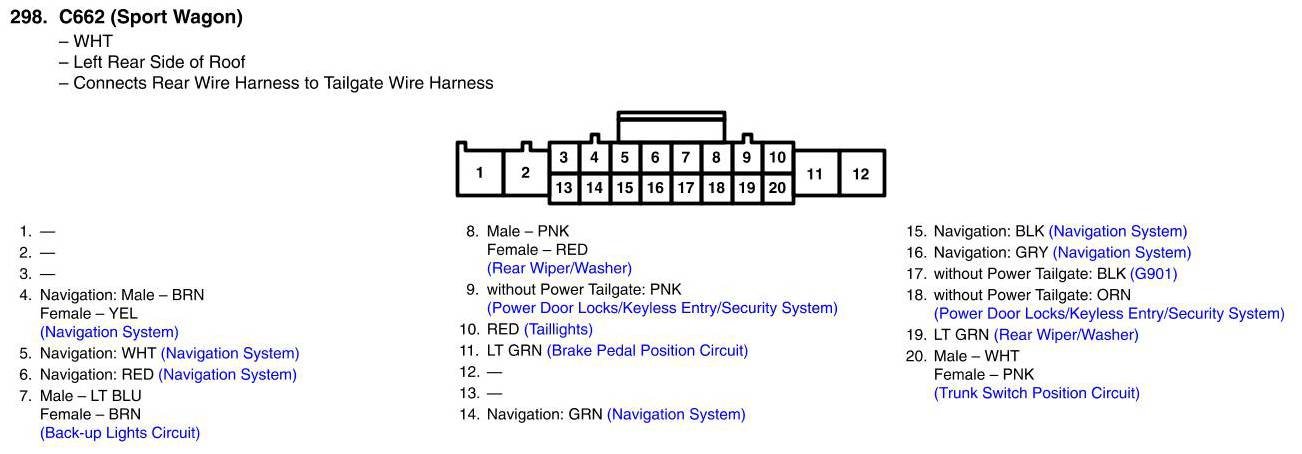

C662 Connector View (Sport Wagon)
C662 Connector View (Sport Wagon)
