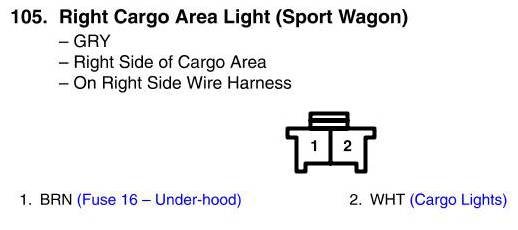

View 105 - Right Cargo Area Light Connector View (Sport Wagon)
View 105 - Right Cargo Area Light Connector View (Sport Wagon)
