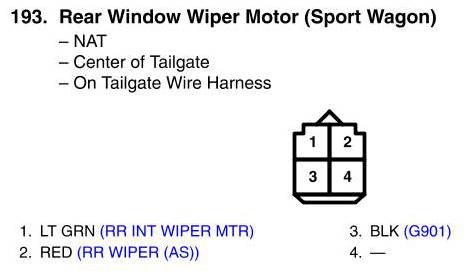

View 193 - Rear Window Wiper Motor Connector View (Sport Wagon)
View 193 - Rear Window Wiper Motor Connector View (Sport Wagon)
