Fuse: Locations
Fuse Locations

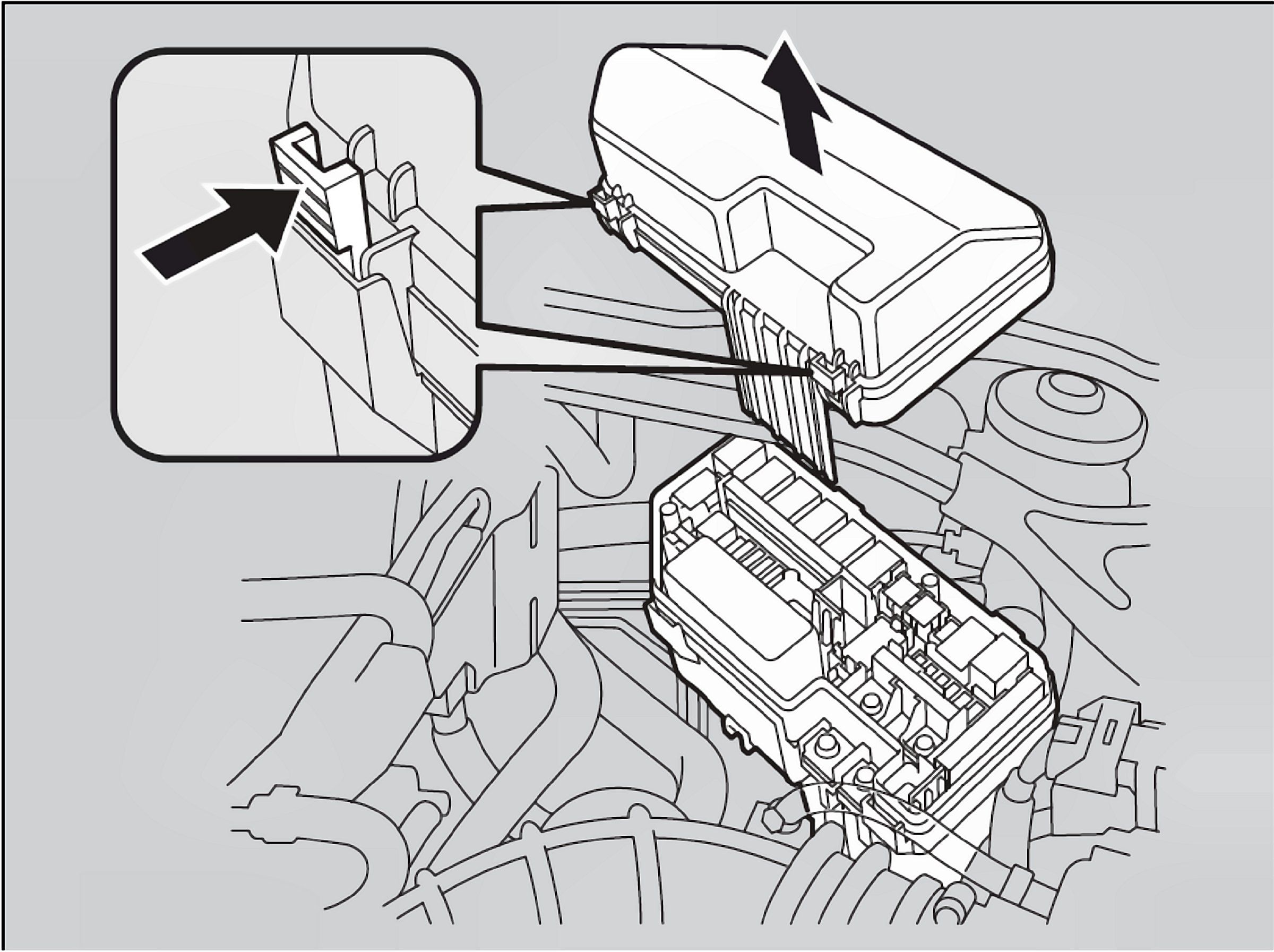

Engine Compartment Fuse Box
Location:

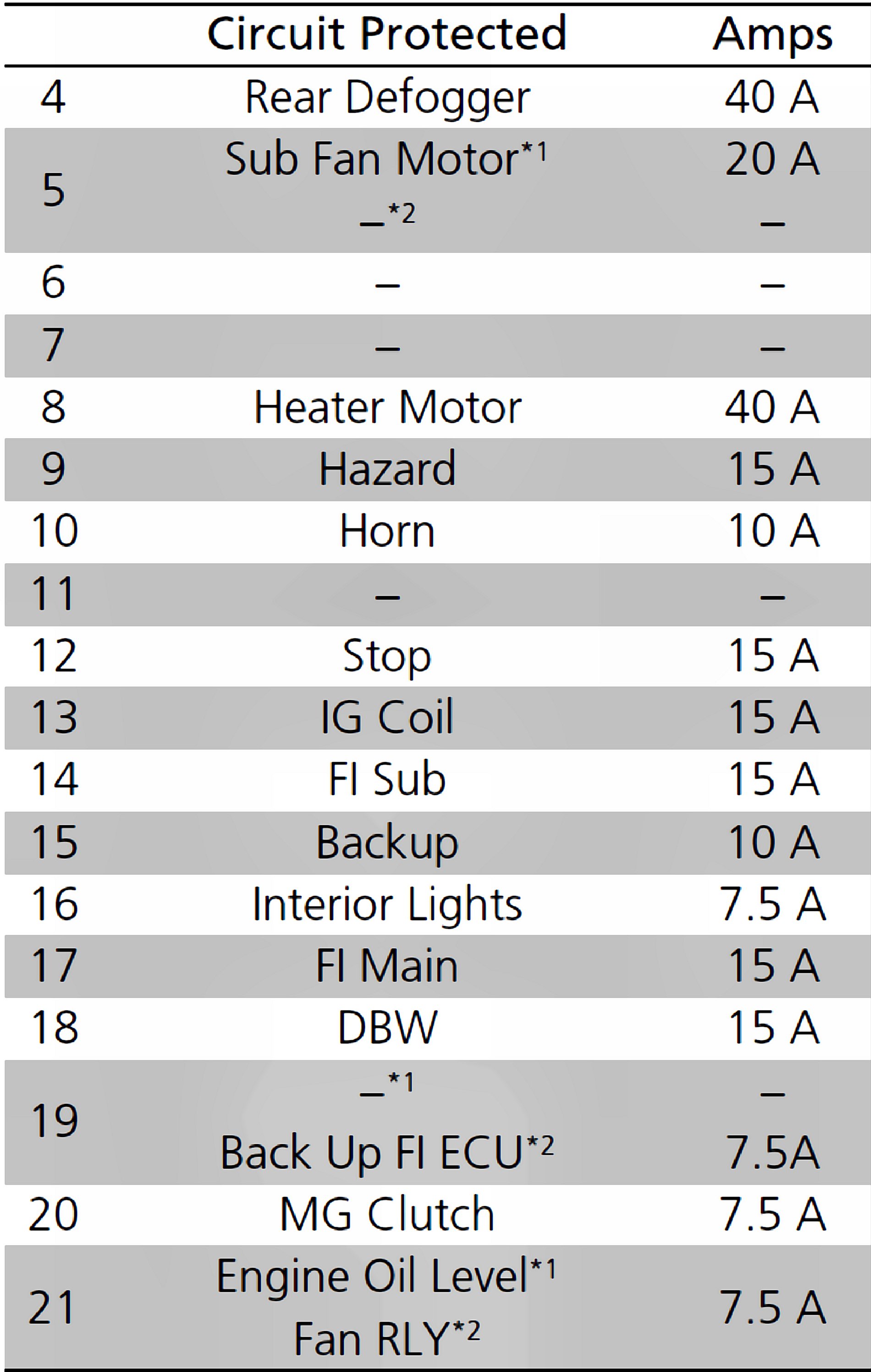

Fuse To Component:
Fuse To Component Cont.:

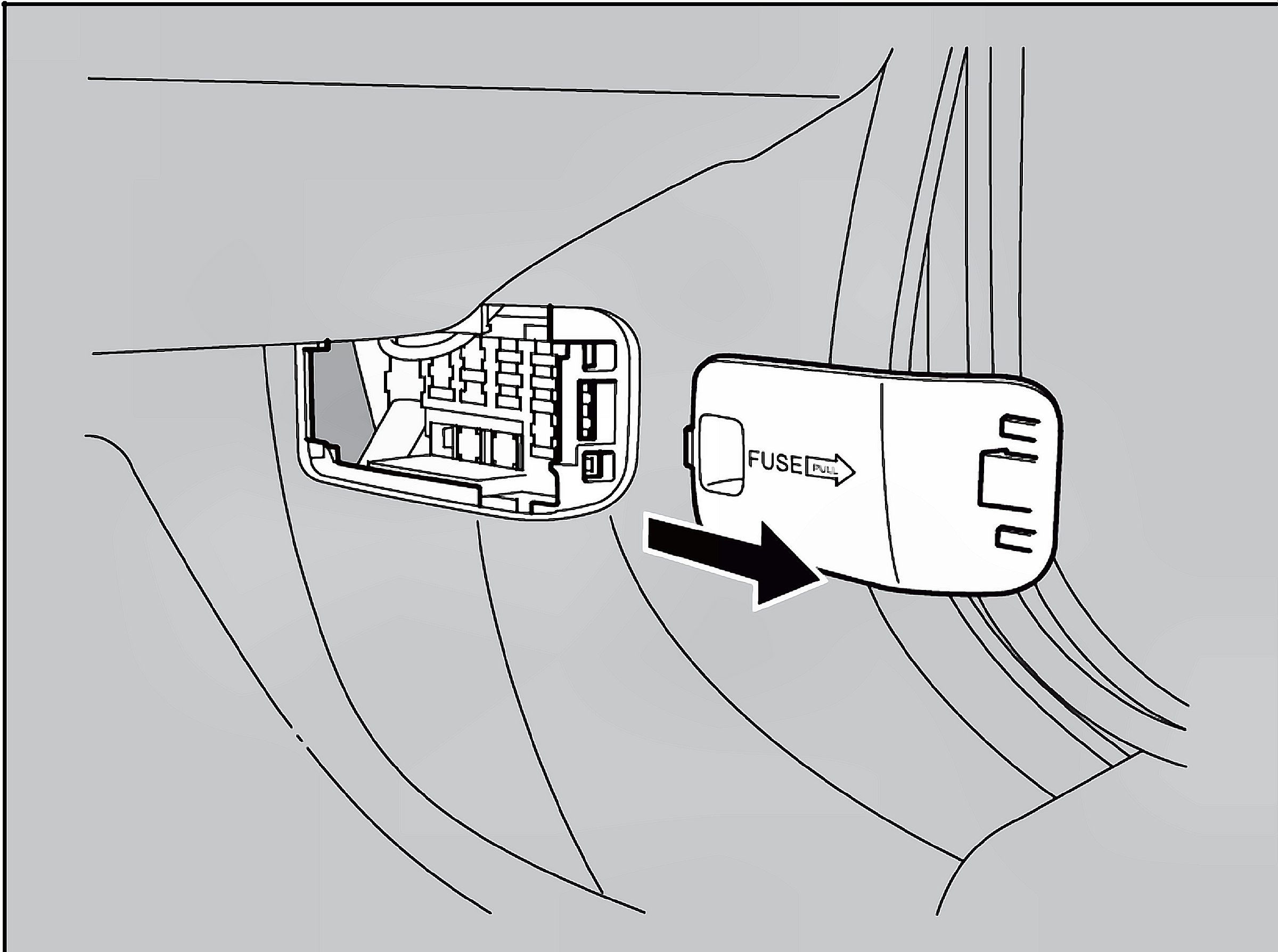

Driver Side Fuse Box
Location:

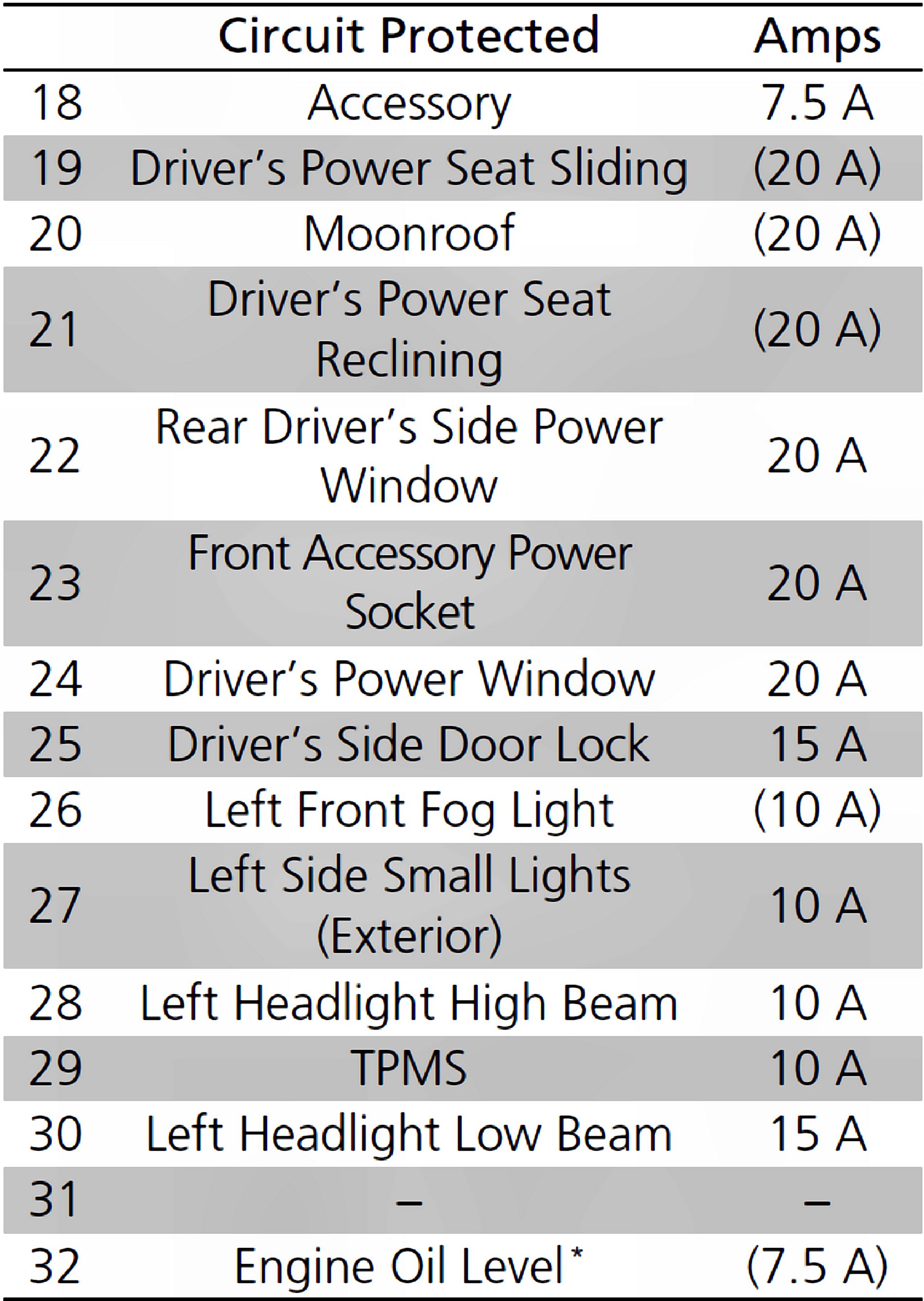

Fuse To Component:
Fuse To Component Cont.:

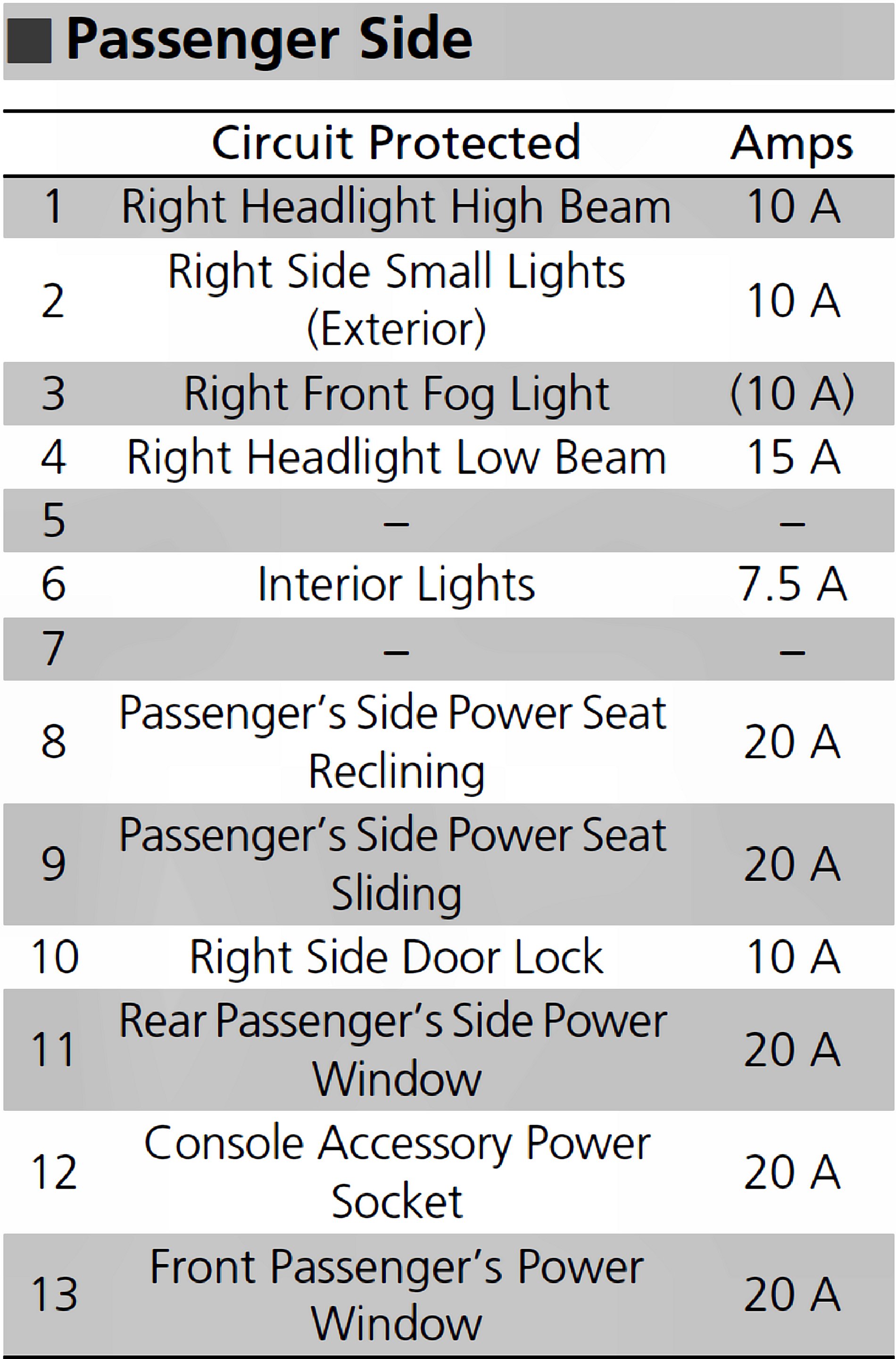

Passenger Side Fuse Box
Location:
Fuse To Component:
Fuse To Component Cont.:
