Injection Pump - Identification
NO: N-30-81November 17. 1981
Subject:
Diesel Injection Pump Identification
Key Points:
- Warranty parts tag completion
- Identifying New and Exchange pumps
- Claim completion
- Packaging parts
Warranty claim rejections and parts returns can be reduced by proper completion of warranty parts tags. In order to determine the correct warranty code refer to the identification stamp on the injection pump housing. All Robert Bosch injection pumps have a 10 digit part number stamped on the housing.
When an original pump core is returned for rebuilding, the Robert Bosch Corp. stamps an X over the last digit and stamps a new digit next to it. Thus, indicating an exchange pump. Proper completion of Warranty parts tags are mandatory.
Bosch Diesel Pump Identification Numbers:
Type 17 - up to an including 1980 vehicles
New part number 0 460 494 005
Exchange part number 0 460 494 00X7
Type 32/33 - up to and including 1980 vehicles
New part number 0 460 494 030
Exchange part number 0 460 494 03X1
Type 17/32/33 - 1981 vehicles
New part number 0 460 494 050
Exchange part number 0 460 494 05X1
Type 17/32/33/Jetta - 1981 vehicles
New part number 0 460 494 077
Exchange part number 0 460 494 07X8
Audi 5000 - All
New part number 0 460 405 003
Exchange part number 0 460 405 00X4
The Robert Bosch part number is for identification only. Use applicable VWoA exchange part number for repair order claim completion.
The Robert Bosch part number is embossed as shown in the sample:
Robert Bosch Exchange Part Number
Claim Completion:
1. Delivery date - Original equipment: Vehicle first put into service.
Exchange part: Delivery date - spare part
2. Warranty Code - Original equipment: 2
Exchange part: 4
3. Mileage - Original equipment: Mileage on vehicle.
Exchange part: Elapsed mileage - parts warranty.

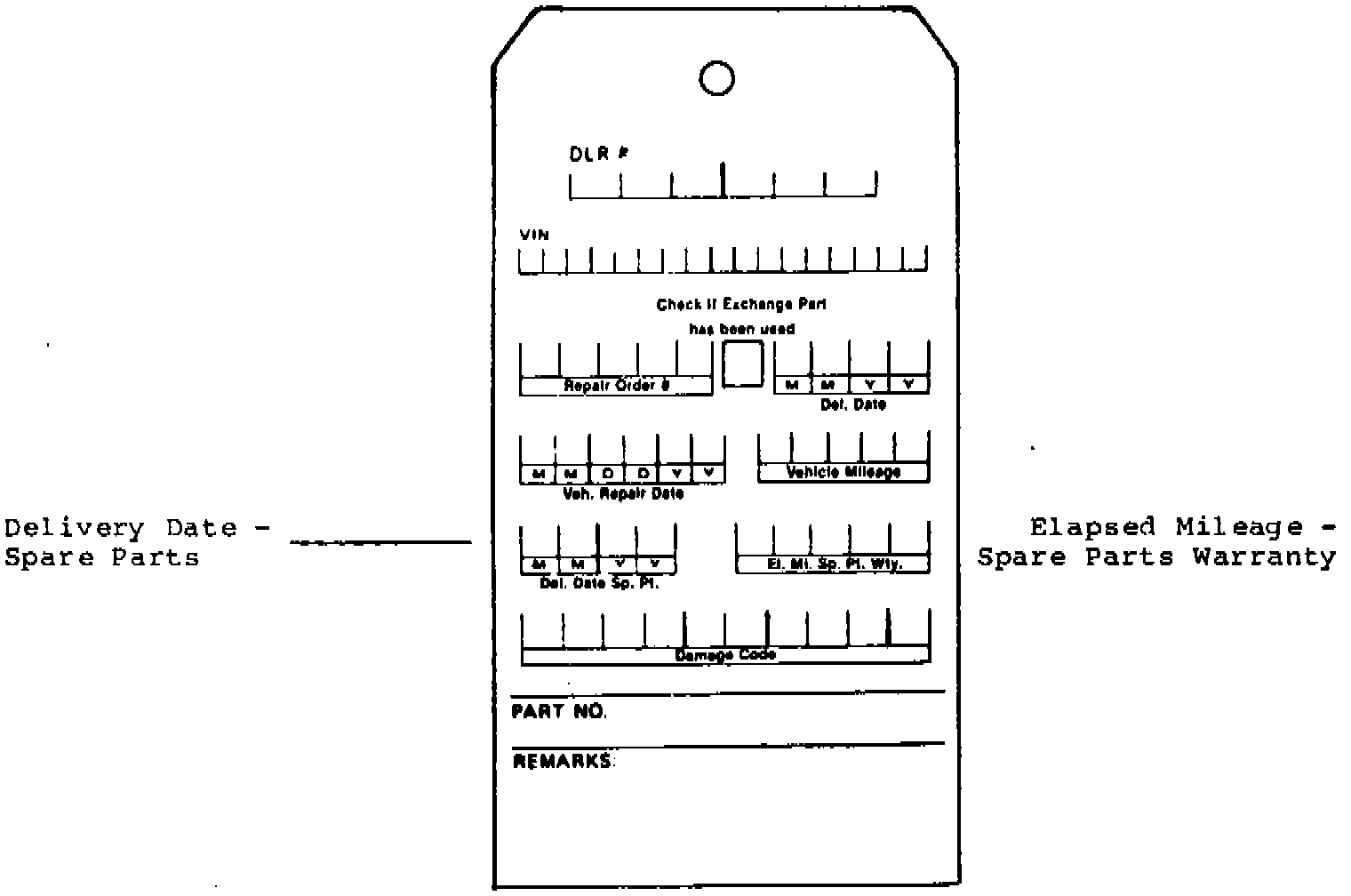

Completion of Warranty Parts Tag
All Warranty parts must be drained of fluids, cleaned, and identified with a fully completed Warranty Parts Tag. The reason for the failure must be entered in the "Remarks" area - The symptoms the customer has experienced.
When an exchange Diesel pump or another spare part is replaced, the fields identified for spare parts warranty must also be completed.
Note:
Diesel pumps received without fully completed Warranty Parts Tags will not be accepted.
Packaging Warranty Parts
Special care must be taken with Diesel injection pumps. This component must be returned complete, as supplied by the vendor, with all the protective caps, plugs, covers, levers, etc. in place. Plug all inlet/outlet holes, cover and protect the driveshaft threaded and tapered contact surface.
It is essential that all requested Warranty parts are packed properly to prevent damage during shipping. The replacement parts carton and packing should be used.
