Manual Steering Gear - New Adjusting Procedure
83audi01Applies To
4000
Group
48
Subject:
Manual Steering Gear
Part Identifier
Key Points
New adjusting procedure
A 037
Number
83-01
May 10, 1983
Manual steering gear adjustment procedure is changed as of VIN.. DA 087 236
Steering gear, adjusting
- turn wheels to straight-ahead position

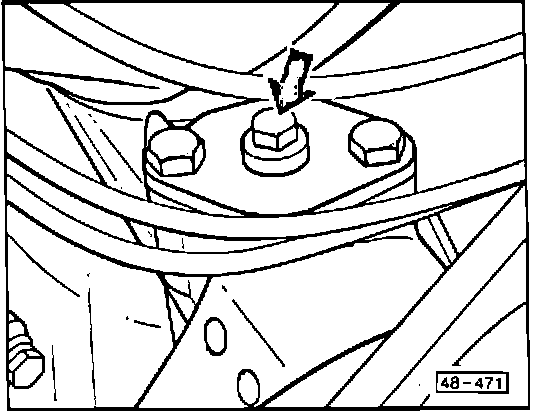

- turn adjusting bolt (arrow) clockwise approx. 20~
- road test vehicle
^ if steering too heavy
- turn adjusting bolt slightly counter-clockwise
^ if steering too loose
- turn adjusting bolt slightly further clockwise
- road test vehicle
