Timing Belt Cover - Fully Closed

Group: 15
Number: 84-04
October 31, 1984

Applies To: 4000 Diesel

Subject:
Drive Belt Cover

Part Identifier N/A

Key Points

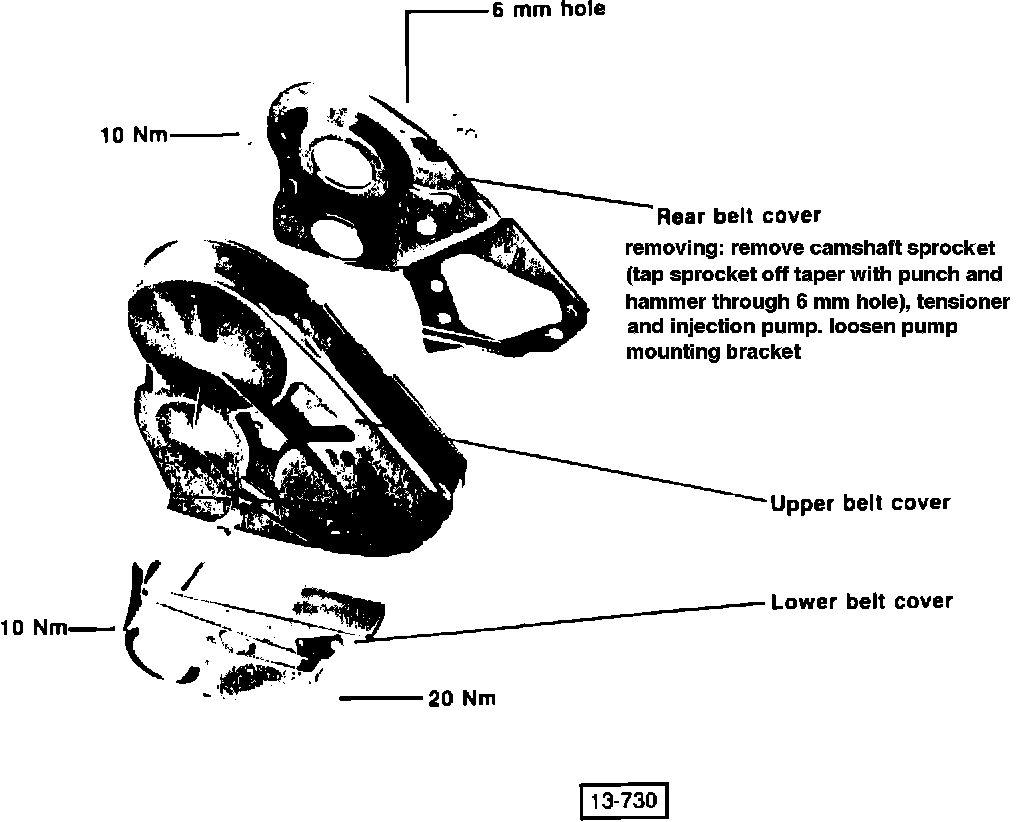

Fully closed belt cover for 1.6L Diesel engine

A90





Beginning in February 1984, the Diesel engine has been produced with a fully closed drive belt cover.

Additional new parts include a revised injection pump mounting bracket and intermediate shaft pulley. The pulley now mounts closer to the engine block.

Note

Only the new version pulleys will be supplied as service parts.

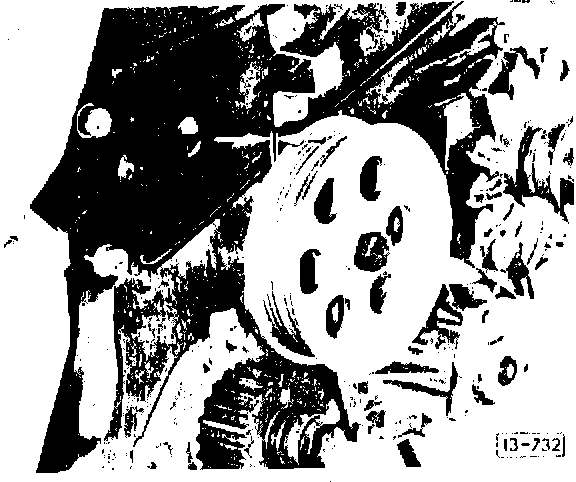

When installing the new version pulley in earlier engines (without fully closed belt cover) it is necessary to provide at least 0.5 mm (0.020 in.) clearance between pulley and injection pump mounting bracket (arrows). Rework pump bracket as necessary.
