Cruise Control Wiring - Current Flow Diagram Addition
83audi02Applies To QUATTRO
1983
(Supersedes Product Circular, Grp. 97, No. 82-04)
Group
WIRING DIAGRAMS
Subject:
Current-Flow Diagram
Part Identifier N/A
Key Points
Cruise Control Wiring - - Addition to overall current-flow diagram
A
Number
83-05
March 10, 1983

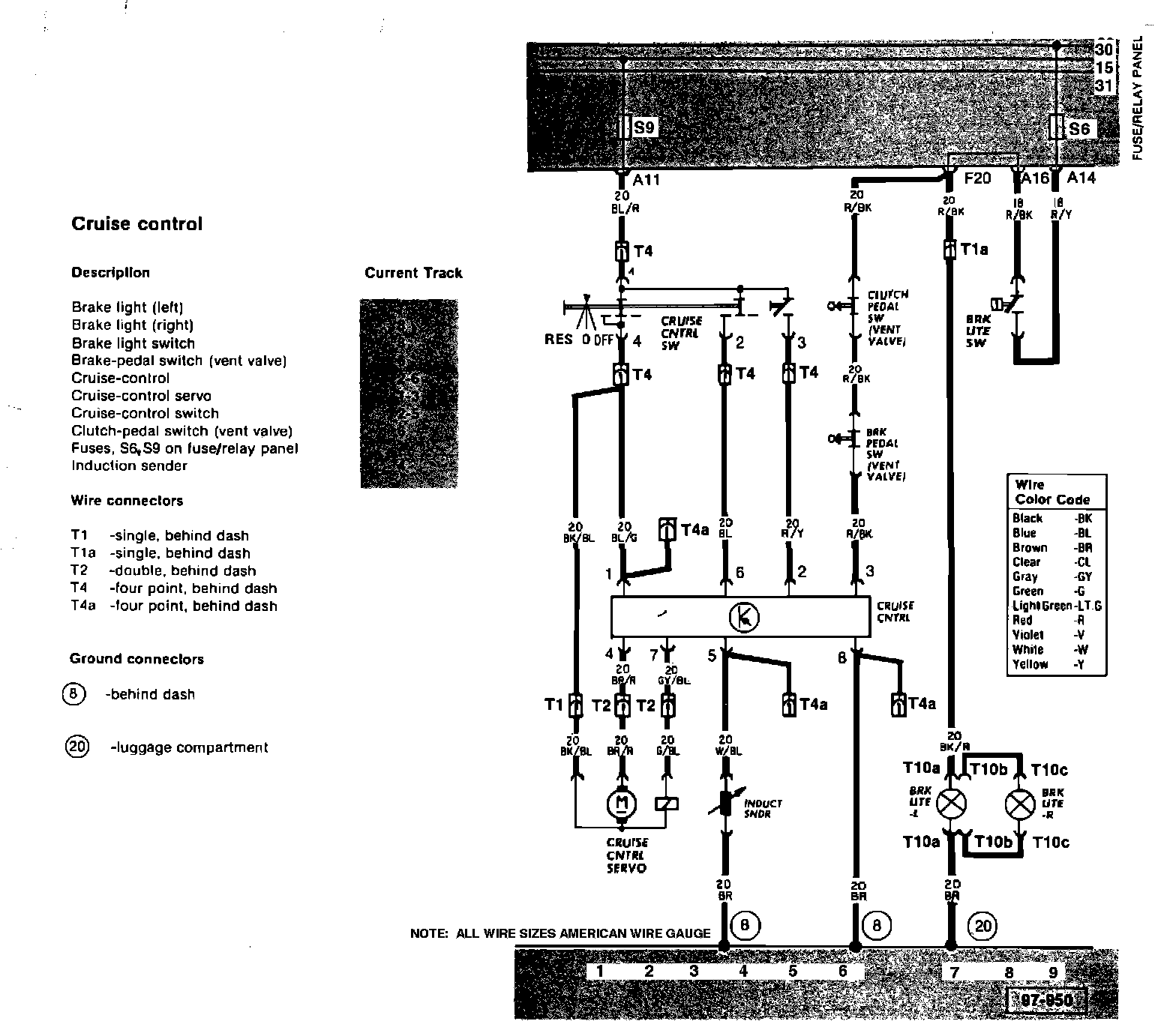

Current-Flow Diagram
