Power Door Locks - Wiring Diagram

83audi02

Applies To QUATTRO


(Supersedes Product Circular, Grp. 97, No. 82-02)
Group

WIRING DIAGRAMS
Subject:

Power Door Locks

Part Identifier 57 17/18
Key Points

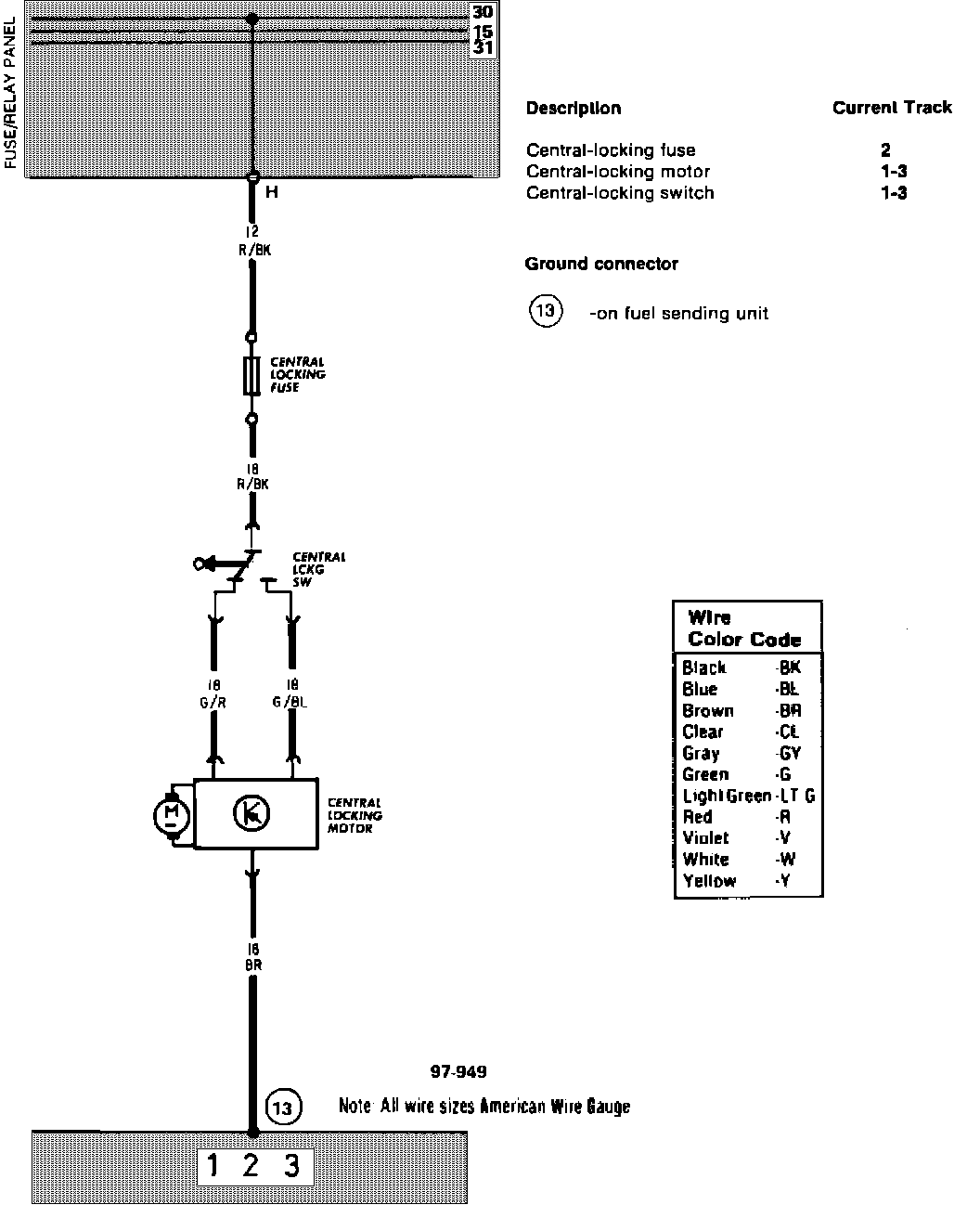

Wiring Diagram

A
Number

83-03

March 10, 1983



Wiring Diagram
