Rear Window Wiper, Washer - Wiring Diagram

83audi02

Applies To QUATTRO

1983

(Supersedes Product Circular, Grp. 97, No. 82-05)
Group

WIRING DIAGRAMS
Subject

Current-Flow Diagram


Part Identifier N/A
Key Points

Rear window wiper/washer - Wiring Diagram


A
Number

83-06

March 10, 1983

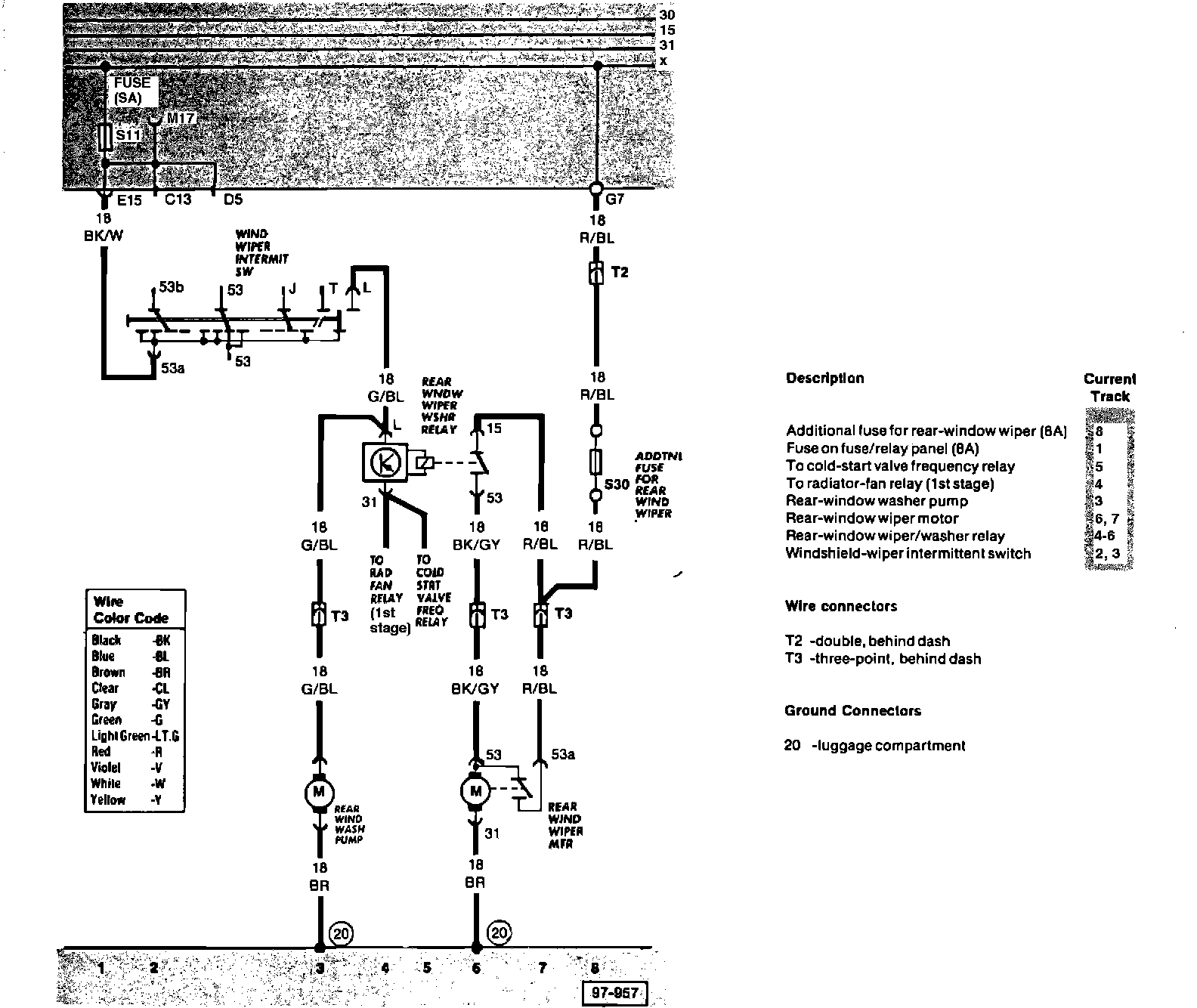

Current - Flow Diagram
