Control Assembly: Testing and Inspection

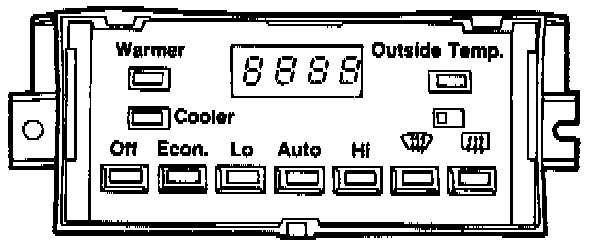

Control Head
Control Head Connector View:
Control Head Connector, viewed from rear

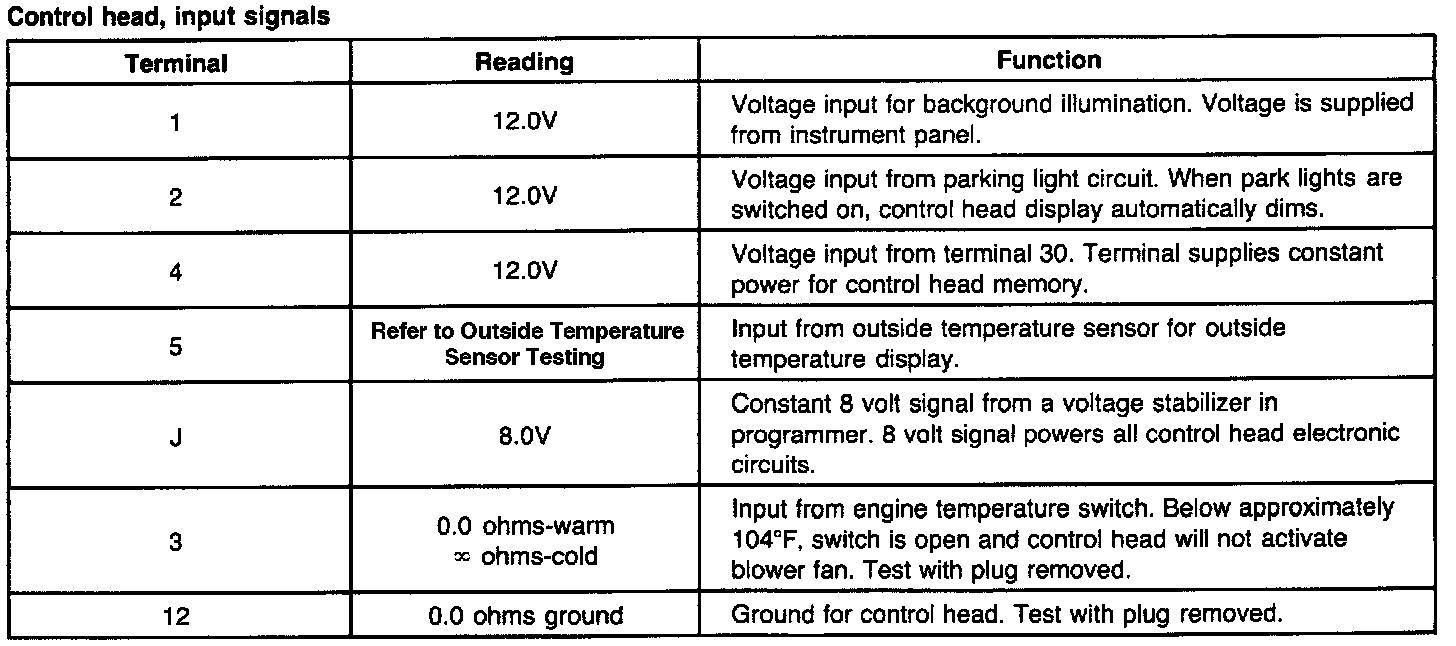

Input Signals, Control Head

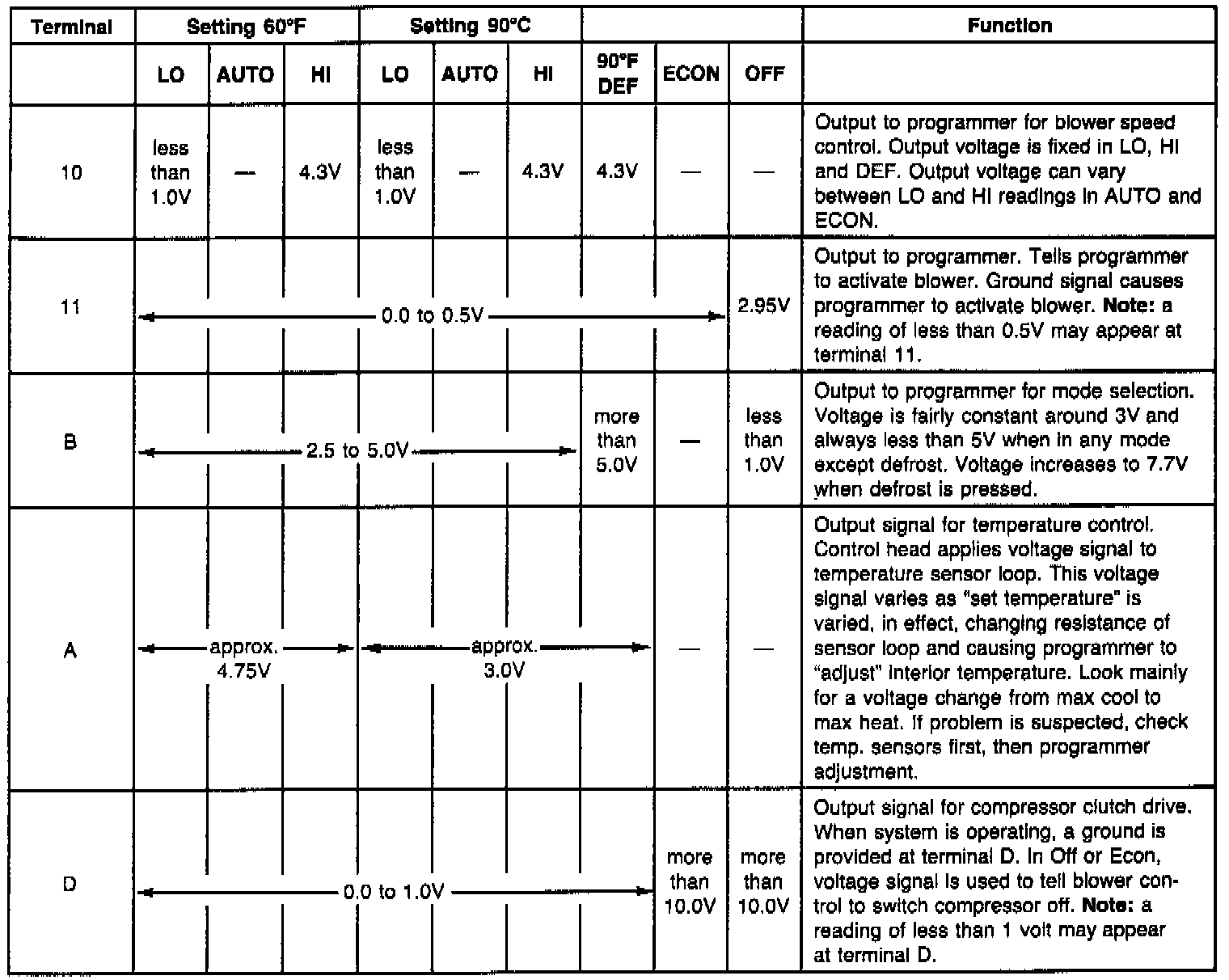

Output Signals, Control Head
Control Head
Control Head Connector, viewed from rear
Input Signals, Control Head
Output Signals, Control Head
