A/T - Additional Parts Required When Replacing
86audi1Applies To 5000S, WAGON
1984
Group
37
Subject:
Automatic Transmission 087
Part Identifier 37 35
Key Points
Additional parts required when replacing transmission up to VIN 44 E 090 667
(Supercedes Product Circular, Group 37, No. 84-02, 9/11/84) C
Number
86-01
October 2, 1986
The automatic transmission, Part No. 087 300 039 D, has been superseded to Part No. 087 300 039 N.

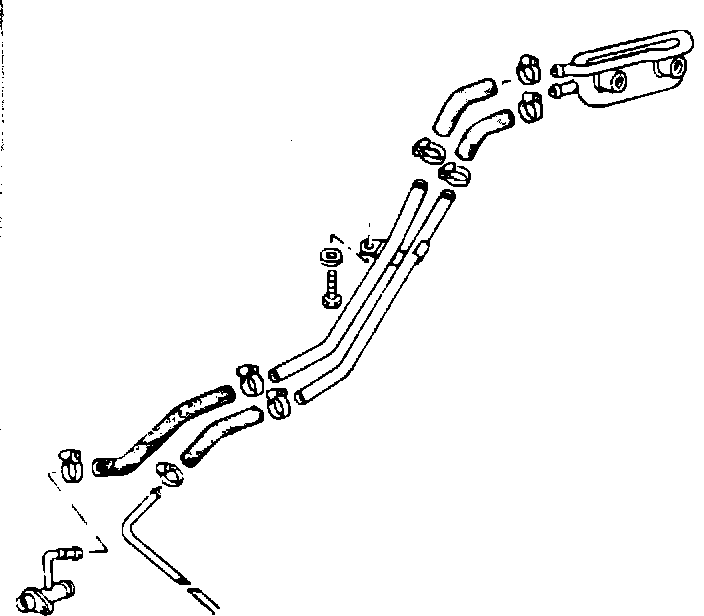

When installing the new 039 N transmission in place of the 039 D (vehicles produced prior to VIN 44 E 090 667), the following parts must also be used:
Part No. Qty. Description
035 121 447 E 1 Water feed hose - transmission
cooler
035 121 448 B 1 Water return hose -
transmission cooler
035 121 481 1 Water pipe assembly -
transmission cooler
035 117 127 E 2 Water connecting hose -
transmission cooler
N 024 509 2 6 Hose clamp - No. 12-22
N 024 510 3 2 Hose clamp - No. 16-25
N 010 237 6 1 Hex head bolt - M8 x 12
N 011 670 11 1 Washer
CAUTION
Part numbers are listed for reference only. Always consult with the Parts Dept. for latest information.
Note
Replacement transmissions, Part No. 087 300 039 N, will randomly come with (rear mounted) oil coolers, Part No. 087 409 061 E, which have cooler lines at a 35~ angle (2 o'clock position) to the cooler housing.
With this oil cooler (061 E) only the two cooler hoses listed below are needed:
Part No. Qty. Description
034 121 481 1 hose
034 117 127 2 hose
