Audio - Harness Connectors

83audi02

Applies To

5000 S

(1984 M.Y.)
Group


90
Subject:
AIMOR RADIO

INSTALLATION IN 1984 M.Y.

Part Identifier N/A
Key Points

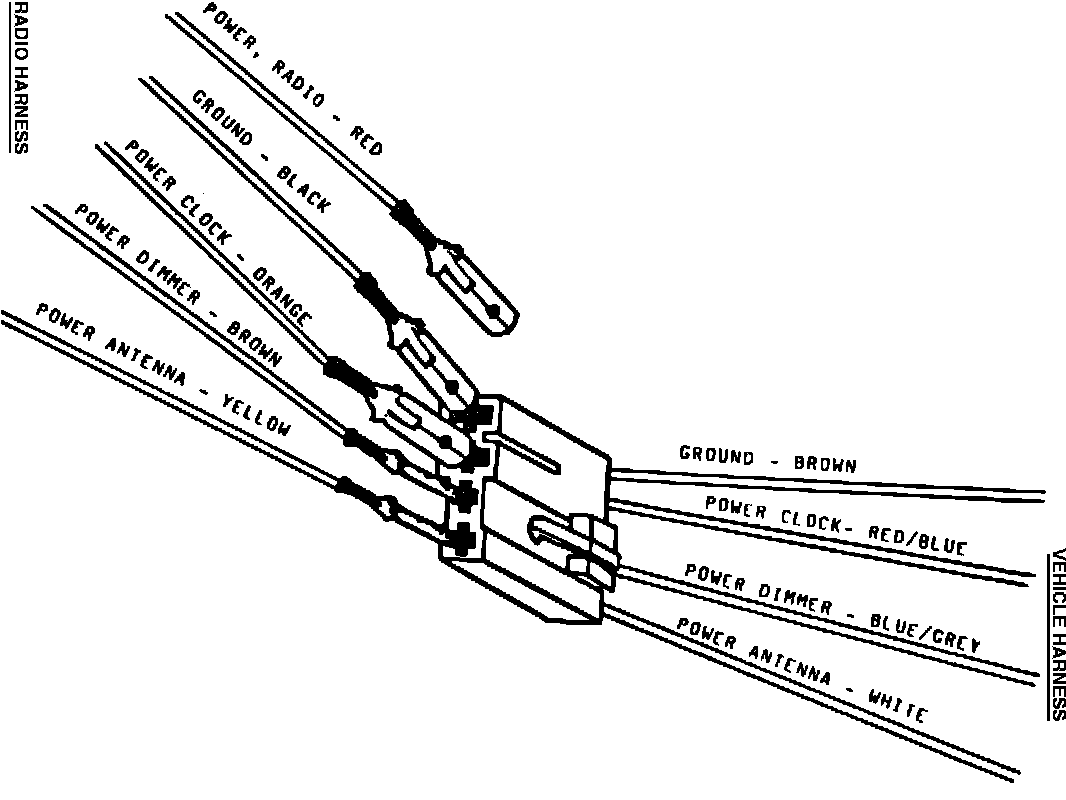

HARNESS CONNECTION
Number


83-01 c

June 23, 1983



- 1984 M.Y. 5000 S vehicles are factory equipped with 4 prong lock type radio harness connector housing (female).

Until 1984 M.Y. Aimor radios can be equipped by the supplier with the corresponding 4 "male" connector housing, the male connnectors must be individually pushed into the vehicle harness connector and secured with tape.

- The fifth male connector supplies operating power to the radio and has to be spliced into a power source after ignition.

- Due to supply difficulties, some 1983 M.Y. Aimor radios will be supplied during June/July for installation in 1984 M.Y. Audi 5000 S vehicles.

As the rear speaker connections are different in the installation kit, a supplementary connecting harness will be supplied with these radios.
