Central Hydraulic Pump - Priming After Repairs
84audi2Applies To 5000S, WAGON, TURBO
1984
Group
48
Subject
Central Hydraulic Pump
Part Identifier 48 98
Key Points
Prime pump after repairs
C
Number
84-01
September 7, 1984

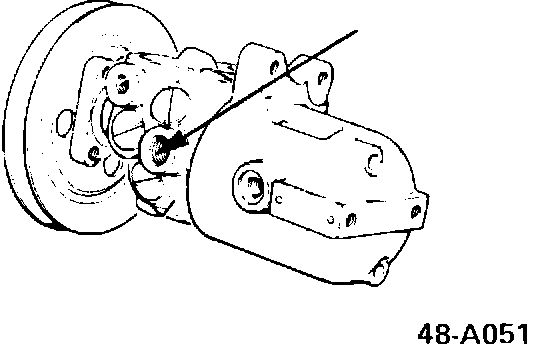

When working on the central hydraulic pump, the suction chamber for the pump (arrow) must be filled with hydraulic oil prior to attaching the return line from the fluid reservoir.
CAUTION Failure to prime the pump after repairs may cause damage clue to dry running.
Use only approved hydraulic oil, P/N AOE 041 020 10.
Use of any other fluids may cause disruption or failure of the central hydraulic system.
