Clutch Over Center Return Spring - Removing/Installing

84audi1

Applies To 4000 S, Coupe
GT, 4000 Quattro 5000, 5000 S
Group


30
Subject

Clutch over-center return spring

Part Identifier 30 35
Key Points

Removing over-center return spring


A 066
Number

84-01

June 26, 1984

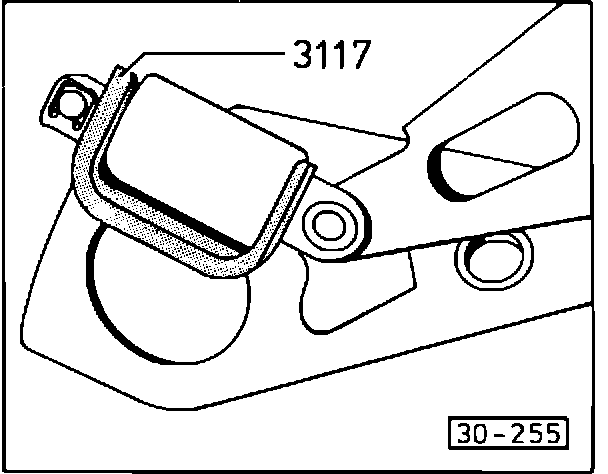

Use special tool 3117 when removing/installing clutch over-center return spring.

Work sequence

- place tool 3117 over spring
- remove circlips
- remove pins
- remove spring together with tool

- carefully remove spring from tool
- reverse sequence to install spring
