Exhaust Manifold - Leakage

89audi06

Applies To: 5000 1984-1985


Subject: Exhaust Manifold - Leakage


Supercedes 87-01, dated July 31, 1987

Number: 26 Group: 89-01

May 31, 1989


Exhaust System

Cause:

Exhaust manifold warps causing studs to break in area of exhaust port # 1 and/or # 5.


Production Change:

No change.




Service Solution:

Always replace both studs on exhaust port 1 and 5 when exhaust manifold is removed. Replace broken studs with tempered studs.

Check exhaust manifold for warpage and resurface is necessary.

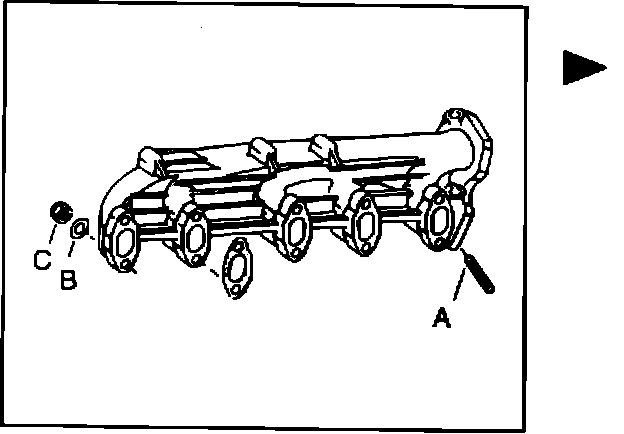

A. Studs P/N: N 901 889 02
B. Washer P/N: N 900 955 01
C. Hex Nut P/N: N 902 002 01


CAUTION

Part numbers are for reference only. Always check with your Parts Department for latest Information.
