Hydraulic System - Leaking

87audi03

Number: Group:

87-07
48
July 31, 1987


Brakes - Steering
Applies To: 5000S - 5000T 1984-1985


Subject: Hydraulic System - Leaking
Cause:

Hose from pump to accumulator for brake booster leaking at crimping.

Production Change:

Improved crimping, identified by production date stamped onto crimped area (pump side) beginning "19 5" (19th week of 1985).

As of: June 1985 VIN: 44_F_137017



Service Solution:

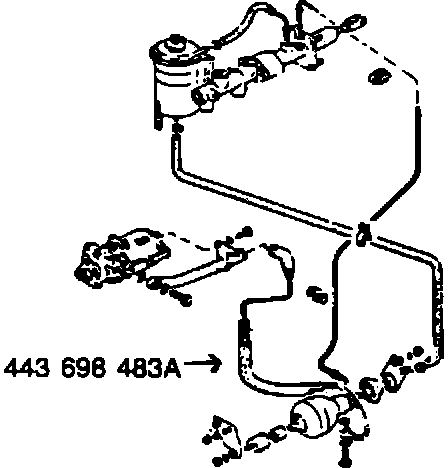

Install hose, P/N 443 698 483A.
