New Mainshaft and 4TH Gear Circlip
84audi1Applies To 4000-5000
4000 QUATTRO
Group
35
Subject
4th Gear Circlip - 5-speed
Transmission 013, 016, 093
Part Identifier N/A
Key Points
New Mainshaft and 4th Gear Circlip
A 064
Number
84-01
February 3, 1984

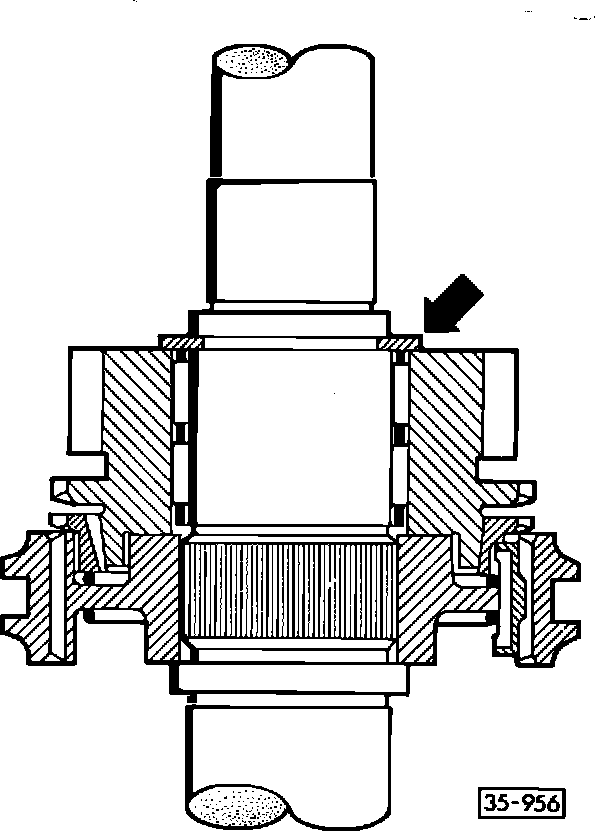

FIGURE 1 - 4TH GEAR CIRCLIP AND THRUST WASHER:
FIGURE 2 - 4TH GEAR CIRCLIP (WITHOUT THRUST WASHER):
4th gear is no longer retained on the mainshaft by a thrust washer and circlip.
The groove in the mainshaft has been moved and enlarged to accommodate a new circlip. A thrust washer is not used and end play is no longer adjusted.
^ used in following applications:
4000; up to Transmission No. 15 06 3 (013) 21 06 3 (093)
5000; up to Transmission No. 15 06 3 (093) 21 06 3 (013) 08 09 3 (016)
^ used in following applications:
4000; from Transmission No. 16 06 3 (013) 22 06 3 (093)
5000; from Transmission No. 16 06 3 (093) 22 06 3 (013) 09 09 3 (016)
Service installation of the new version mainshaft in an earlier transmission requires use of new version circlip. Use:
Part No. N 901 028 01, for transmission type 013 and 093.
Part No. 016 311 344, for transmission type 016.
