Radio - (Rothenburg) Inoperable/Will Not Turn On/Off
87audi03Number: Group:
87-03
91
July 15, 1987
Electrical System
Applies To: 5000S - WAGON - 5000T 1984-1986
Subject: Rothenburg Radio - Inoperable/Will Not Turn On/Off
Cause:
Switch malfunctions.
Production Change:
Improved switches in new and rebuilt radios. 100-hour test on all radios by supplier.
As of: May 1986
Service Solution:
Replace radio.
Improved radios are marked with small sticker "WC4" (Rebuilt) or "WC3" (New). Rebuilt radio may have lower production date but must be marked "WC4".

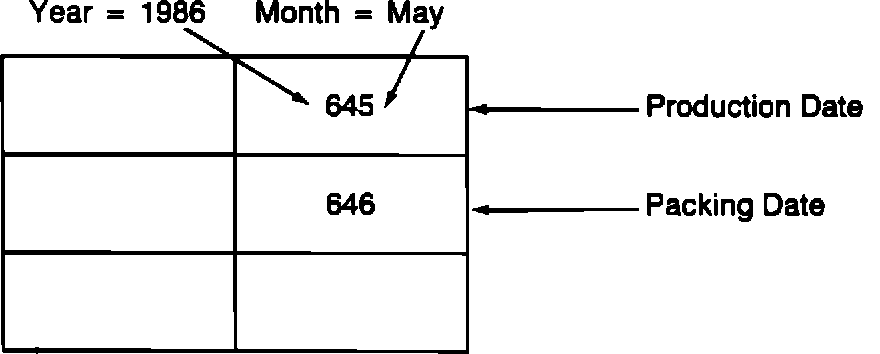

NOTE: Radio can be identified by the paper label glued on top of radio. Right side of label contains two boxes with numbers. Three-digit number in upper box is manufacturing date. Three-digit number in lower box is packing date. When checking radio for production date, use only manufacturing date in upper box.
Sample:
