Installation of Kit Wiring Harness

FIGURE 3 - ELECTRICAL CONNECTIONS:

FIGURE 1:

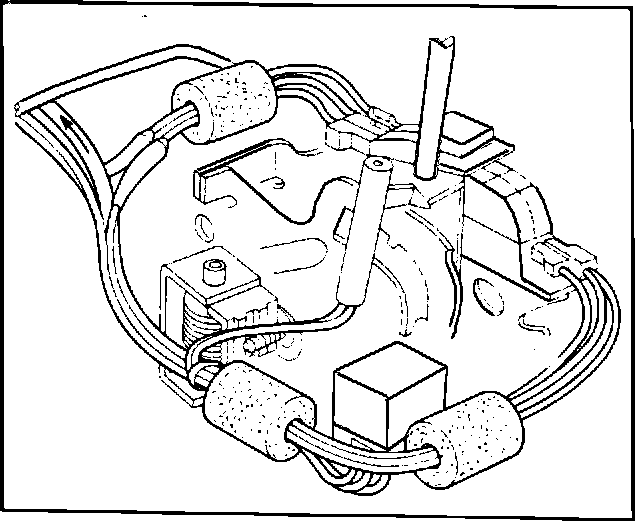

- push relay (11) (w/attached harness (12)) onto selector lever bracket (Fig. 2)

FIGURE 3 - ELECTRICAL CONNECTIONS:

- route R/BK wire through console and over drivers footwell to brake light switch; splice (14) to either R/ BK wire on switch.

CAUTION

Do not confuse the vacuum vent valve with the brake light switch. The wiring colors are different and the brake light switch does NOT have a vacuum connection.


- remove BK/BL wire and terminal from cavity 15 of neutral safety switch connector, insert into single wire connector of kit harness
- connect BK/BL wires (terminal A) to cavity 15
- connect both BK/BL connector halves together

- remove BR/BL wire and terminal from cavity 50A of neutral safety switch connector insert into single wire connector of kit harness
- connect BR/BK wire (terminal C) to cavity 50A
- connect both BR/BL connector halves together



- connect lockout solenoid (5) connectors (E), (F) (either terminal OK)
- position wires using three foam strips




- apply warning label to transmission cover

FIGURE 2:

Operation, Checking

- With shifter in Park position, turn ON ignition

Solenoid must raise lockout bracket (1) to engage setscrew on selector lever.

Note

The setscrew in the selector lever must align with the lockout bracket step (1)

- to unlock selector lever: depress footbrake pedal

- reassemble console in reverse order of removal

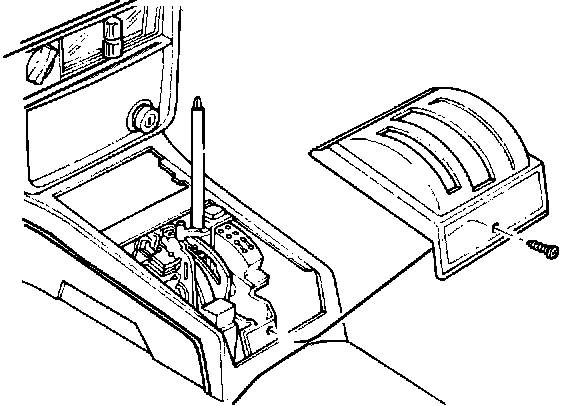

- remove shift lever handle
- remove Phillips screw
- pull cover (with brushes) to rear while pulling upward and lift out
- remove ashtray



- remove Phillips screws
- detach console trim

Note

Top of console trim hooks on lip above center vents

- pry off trim A
5000S Center console, removing/installing

Work sequence



- remove Phillips screws

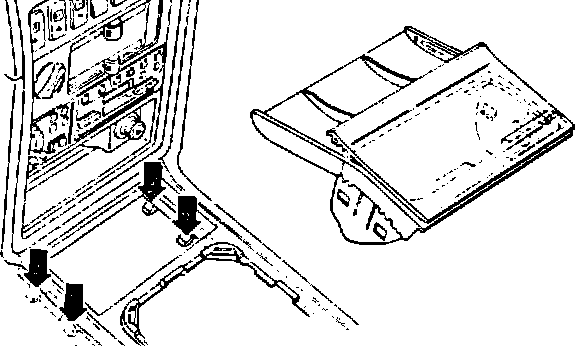

- lower shelf at drivers side and detach from guides (arrows)




- remove Phillips screws
- swing console to passenger side footwell without disconnecting wiring
5000 CS Turbo Center console, removing/installing

Work sequence

Removing

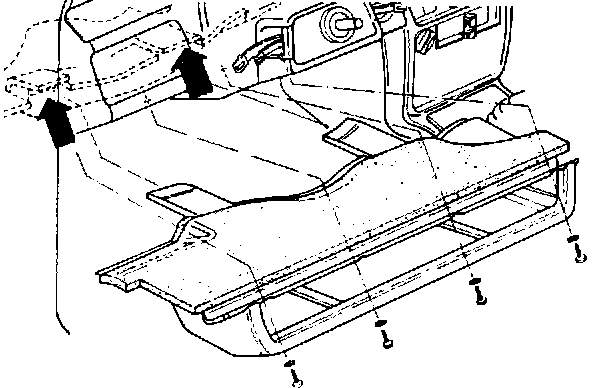

- remove Phillips screws
- lower shelf at drivers side and detach from guides (arrows)
- remove glove box door



- remove shift lever handle
- remove cover (with brushes)
- remove ash tray



- remove Phillips screws

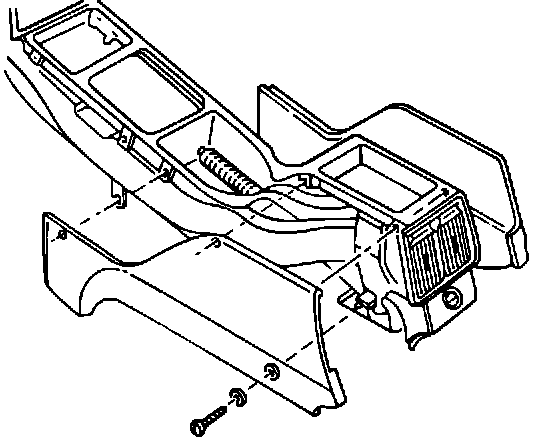

- pull side covers from clips (arrows)

Note

Be careful not to break retaining tab (1)



CAUTION

All screws are not the same length. Do not interchange.

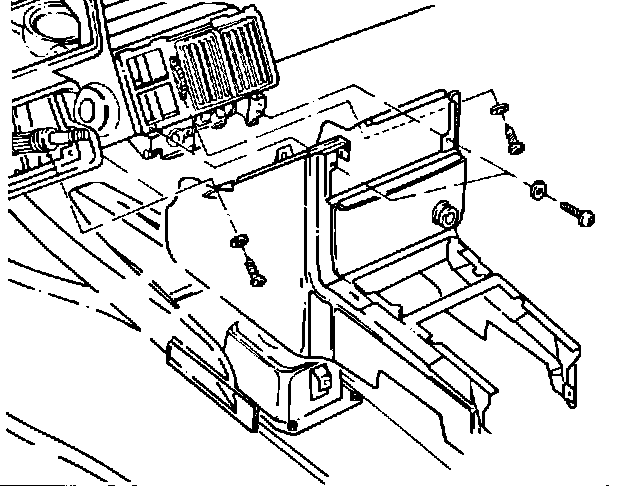

- remove Phillips screws and pull side covers from clips (arrows)



- remove Phillips screws
- disconnect wiring
- remove cover towards rear
Installing

- install in reverse sequence of removal
