Seat Belt - Mounting On Replacement B Pillar

86audi2

Applies To

5000S

All Models

1984-1986


Group
68

Subject Key Points

Front Seat Belt Adjustable belt mounting on replacement

B-pillar

Part Identifier 6875
A239


Number

86-02

June 13, 1986

When replacing a B-pillar equipped with adjustable seat belt anchor, install adjustable anchor in new B-pillar.





1984-1985

Install adjustable anchor part 321 857 800. Do not reuse anchor from old B-pillar.

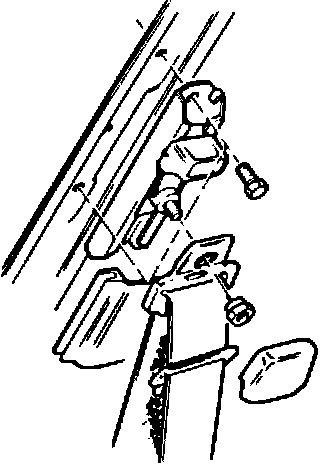

Adjustable seat belt anchor part 321 857 800

Note

After replacement of B-pillar, it may be necessary to modity the adjustable belt mounting on opposite side to make both visually identical.




1986 and later

Reuse original adjusting mechanism when possible.

Adjustable seat belt anchor part 443 857 833 01 C


CAUTION Part numbers are listed for reference only. Always consult with the Parts Dept. for latest information.
