Sunroof Cable Drive Gear - Modification
84audi2Applies To 5000S
1984
Group
60
Subject
Sunroof Drive Gear
Part Identifier 60 22
Key Points
Modification to sunroof cable drive gear
C
Number
84-01
March 15, 1984

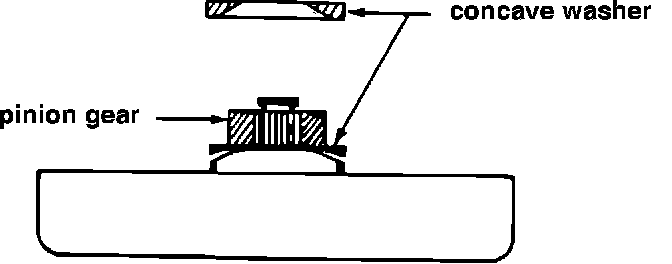

The placement of a concave washer, Part No. 443 877 779, between the sunroof pinion gear and housing will prevent cable displacement and slippage during sunroof operation.
The pinion gear, Part No. 811 877 777, may be replaced if necessary.
CAUTION Part numbers are listed for reference only. Always consult with the Parts Dept. for latest information.
