Towing - Information For Long Distance and Emergency
83audi01Applies To 5000,
5000 Turbo
1984 models
Group
01
Subject:
Towing Procedures
Part Identifier N/A
Key Points
Towing information for long distance and emergency towing
C
Number
83-01
April 22, 1983
GENERAL TOWING INFORMATION
All towing procedures in this circular are based on use of typical sling-type tow truck equipment. If other types of towing equipment are used, these procedures may not apply.
EMERGENCY TOWING
Whenever possible, tow all cars with drive wheels lifted off ground.
LONG DISTANCE TOWING

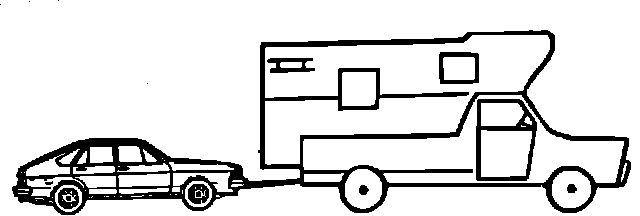

Vehicles with automatic transmission may be towed forward (in driving direction) behind other vehicles (motor homes, etc.) at speeds up to 30 mph for a maximum of 30 miles.
CAUTION
Towing vehicle at more than 30 mph and/or for greater distance than 30 miles will damage automatic transmission for lack of lubrication.
If towing speed will be greater than 30 mph or distance greater than 30 miles, temporary modifications to vehicle are required as follows:
CAUTION
Only general work sequence is outlined. Follow complete instructions in Repair Manual.
- remove drive-shaft assemblies
- remove outer CV joints from drive-shaft assemblies
- install outer CV joint in wheel-bearing housing and secure hub with nut
- install outer CV joint boot
- seal boot small opening against water and dirt
- wrap drive shafts and store in vehicle
Vehicles with manual transmissions
There are no restrictions on speed or distance when towing manual-transmission cars behind other vehicles.
LIFTING VEHICLE WITH TOW TRUCK
Front hookup
- attach J hooks to engine subframe, inboard of lower A frames
- place tow bar under bumper against opening in bumper
- double wrap chains on tow bar
- attach safety chains to lower A frames
- tow vehicle with 130 mm (5 in.) ground clearance under front tires
Rear hookup
Rear towing is not recommended.
